Duplex plans with 1 bedroom per unit

Plan number and image

Description of units

Plan# J564d

Open living area

Bedrooms: 1    Bath: 1
Living area: 1128 sq. ft.
Other: 157 sq. ft.
Total: 1285  sq. ft.

Each unit Living area: 564 sq. ft.

Width: 31'-4"   Depth: 41'-0"

View this plan

Plan# J0518-18d

Open concept w/ garage

Bedrooms: 1    Bath: 1
Living area: 1896 sq. ft.
Other: 894 sq. ft.
Total: 2790  sq. ft.

Each unit Living area: 948 sq. ft.

Width: 72'-10"   Depth: 48'-10"

View this plan

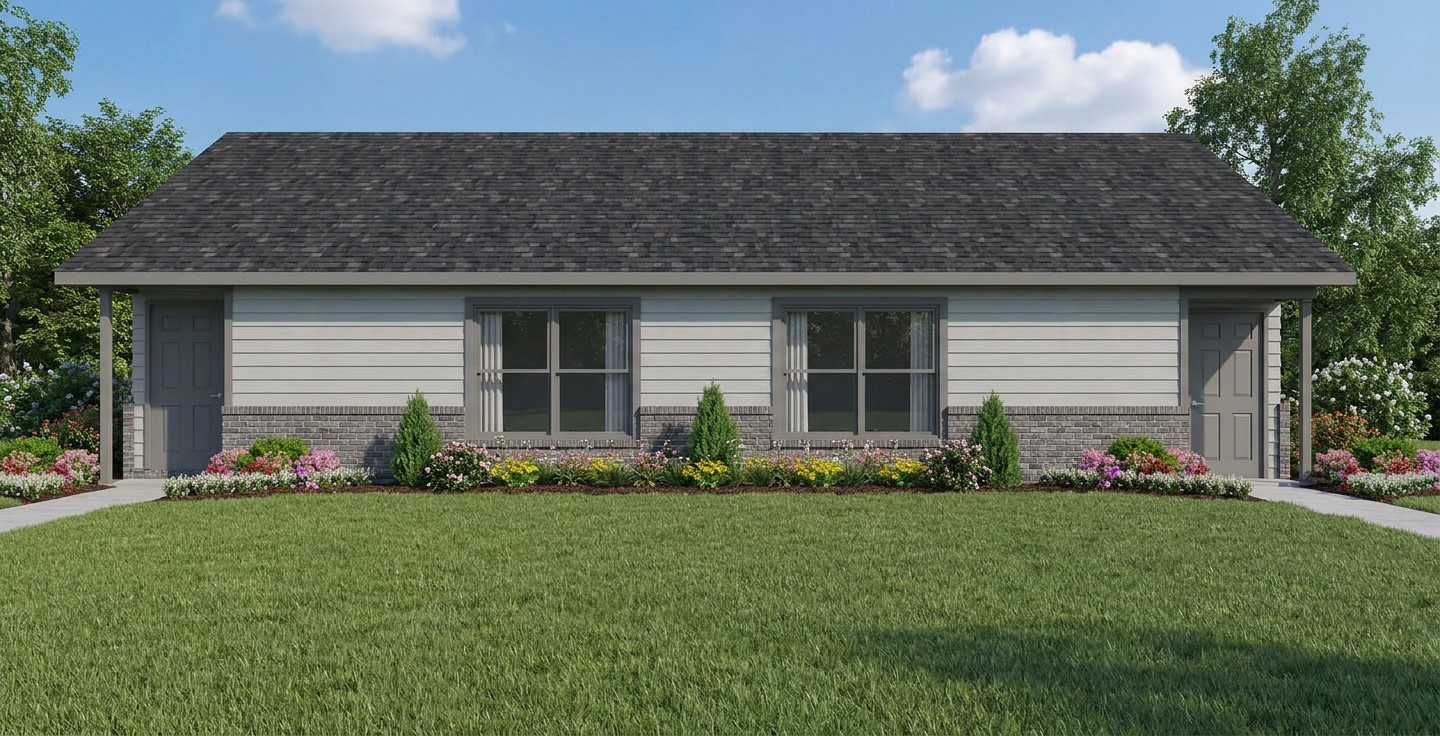

Plan# J1017-18d

Open concept / Economical

Bedrooms: 1    Bath: 1
Living area: 1343 sq. ft.
Other: 32 sq. ft.
Total: 1375  sq. ft.

Each unit Living area: ~671 sq. ft.

Width: 46'-11"   Depth: 30'-6"

View this plan

Plan# J0822-17d

Open concept

Bedrooms: 1    Bath: 1
Living area: 1288 sq. ft.
Other: 202 sq. ft.
Total: 1490  sq. ft.

Each unit Living area: 644 sq. ft.

Width: 36'-0"   Depth: 45'-0"

View this plan

Plan# J1224-17d

Open concept

Bedrooms: 1    Bath: 1
Living area: 1152 sq. ft.
Other: 75 sq. ft.
Total: 1227  sq. ft.

Each unit Living area: 576 sq. ft.

Width: 32'-11"   Depth: 42'-6"

View this plan

Plan# J0921-17d

Garage per unit

Bedrooms: 1    Bath: 1
Living area: 1604 sq. ft.
Other: 858 sq. ft.
Total: 2462  sq. ft.

Each unit Living area: 802 sq. ft.

Width: 80'-11"   Depth: 43'-6"

View this plan

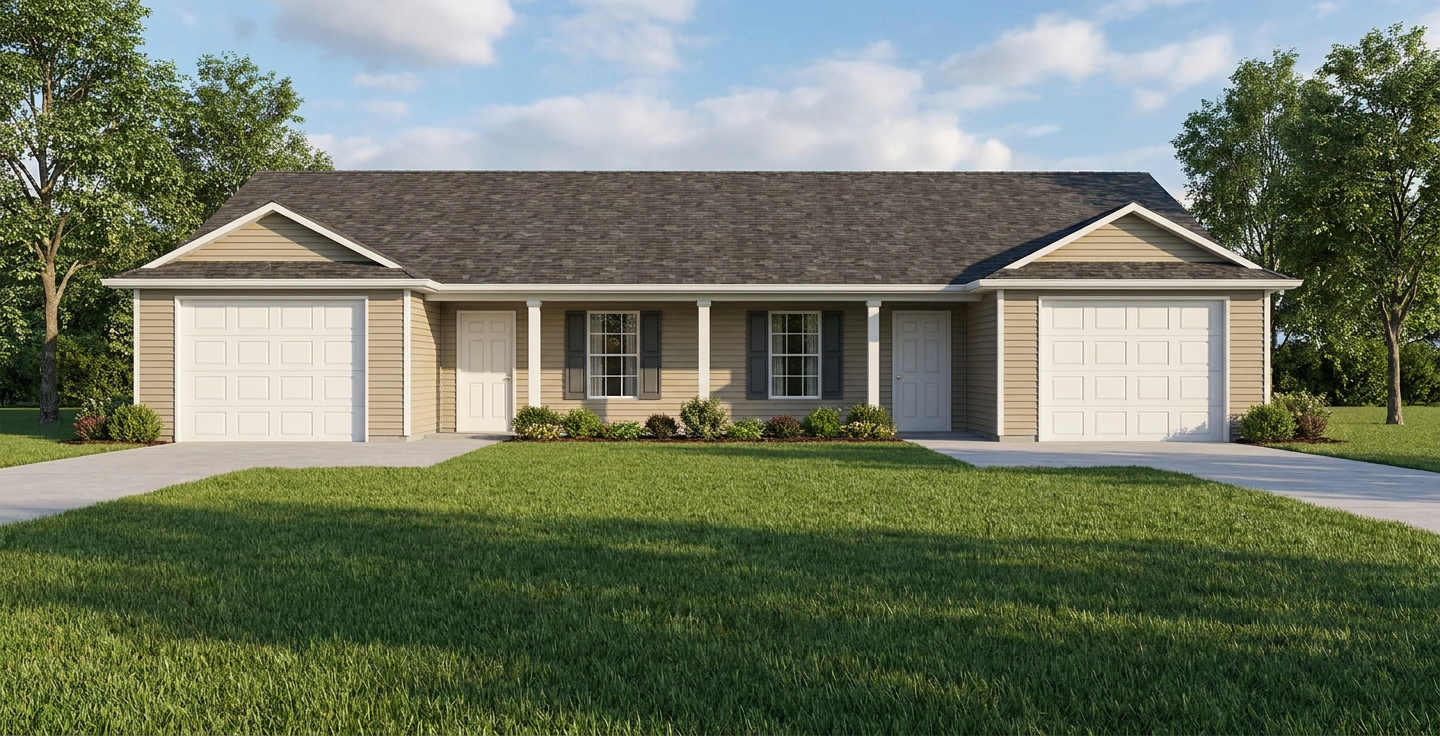

Plan# J0224-16d

Garage per unit

Bedrooms: 1    Bath: 1
Living area: 1200 sq. ft.
Other: 642 sq. ft.
Total: 1842  sq. ft.

Each unit Living area: 600 sq. ft.

Width: 55'-0"   Depth: 36'-11"

View this plan

Plan# J0704-14d

Garage per unit

Bedrooms: 1    Bath: 1
Living area: 1636 sq. ft.
Other: 604 sq. ft.
Total: 2240  sq. ft.

Each unit Living area: 818 sq. ft.

Width: 70'-0"   Depth: 34'-0"

View this plan

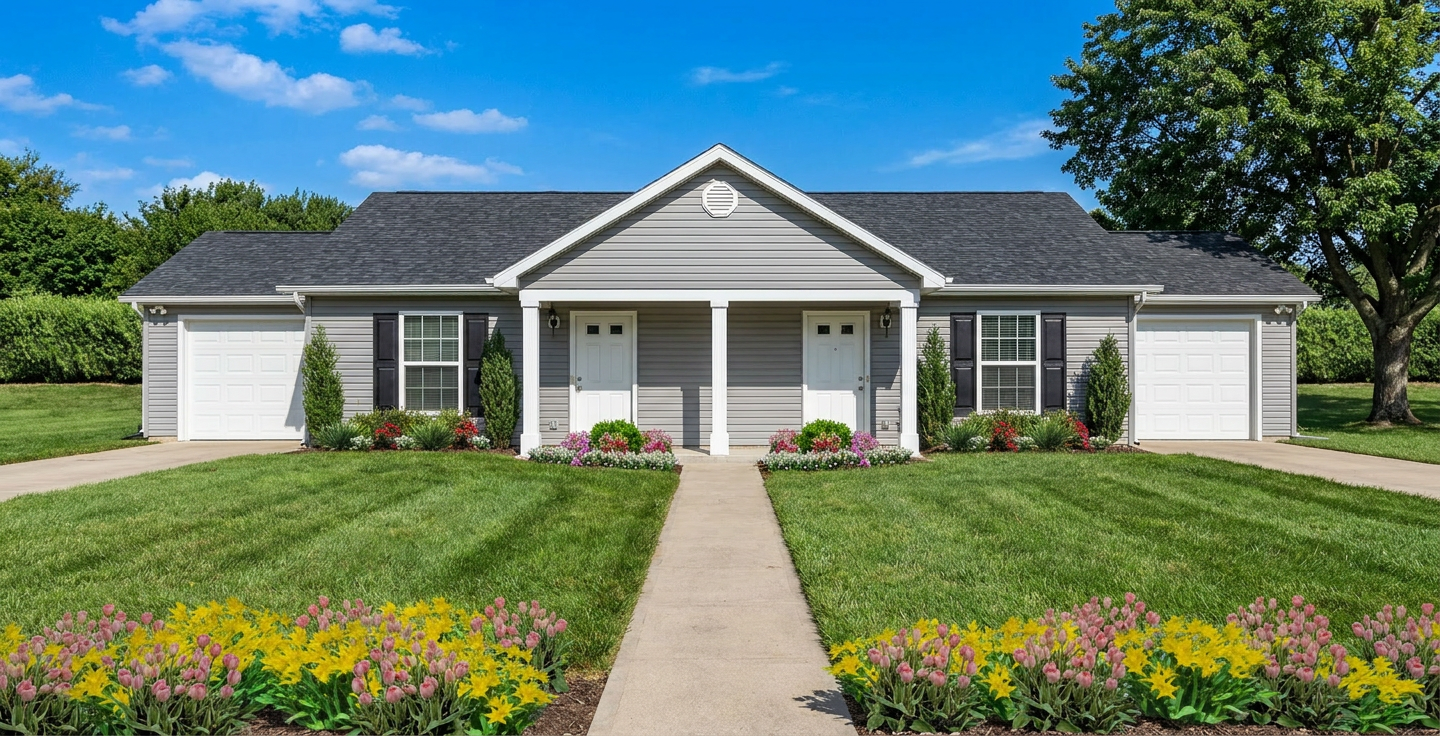

Plan# J0129-14d-2

Garage per unit

Bedrooms: 1    Bath: 1
Living area: 1200 sq. ft.
Other: 592 sq. ft.
Total: 1792  sq. ft.

Each unit Living area: 600 sq. ft.

Width: 64'-0"   Depth: 35'-0"

View this plan

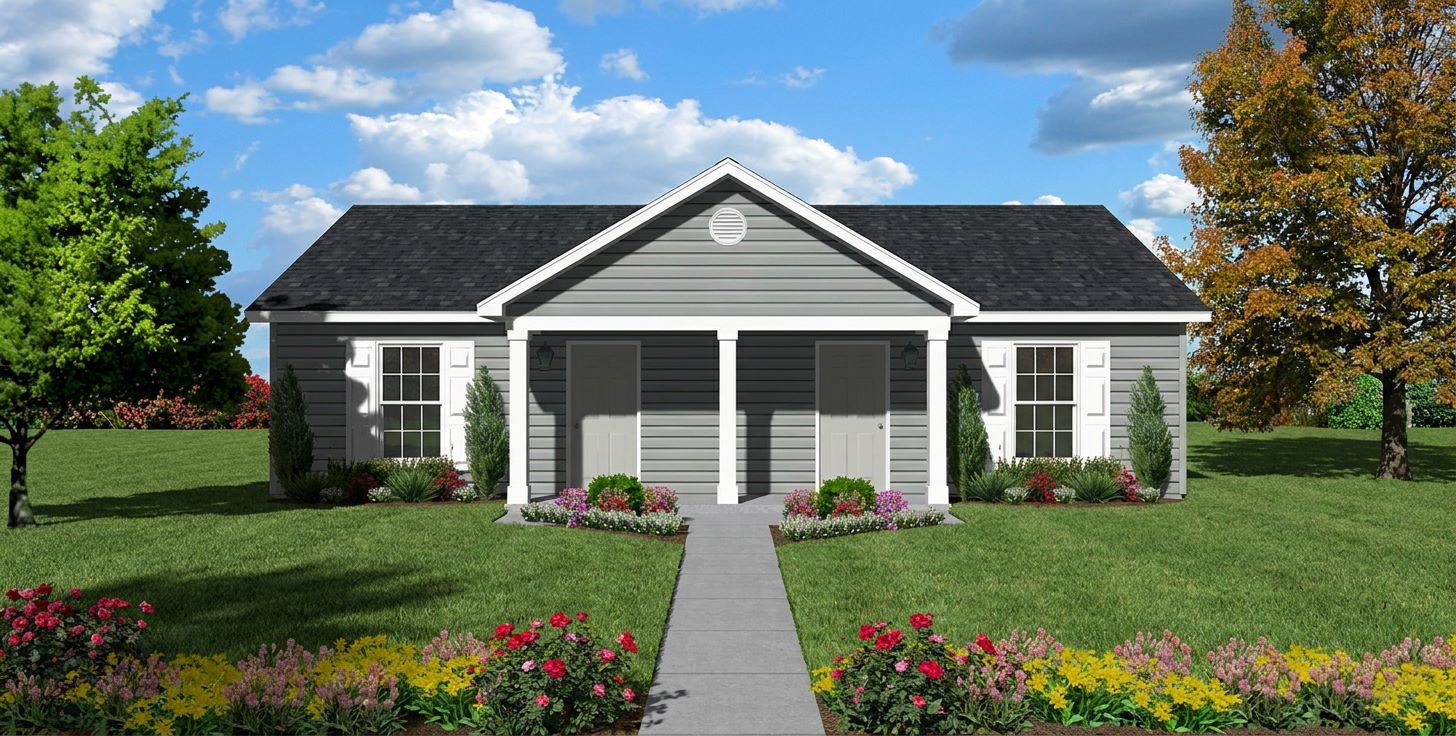

Plan# J0129-14d

Economical floor plan

Bedrooms: 1    Bath: 1
Living area: 1200 sq. ft.
Other: 90 sq. ft.
Total: 1290  sq. ft.

Each unit Living area: 600 sq. ft.

Width: 40'-0"   Depth: 35'-0"

View this plan

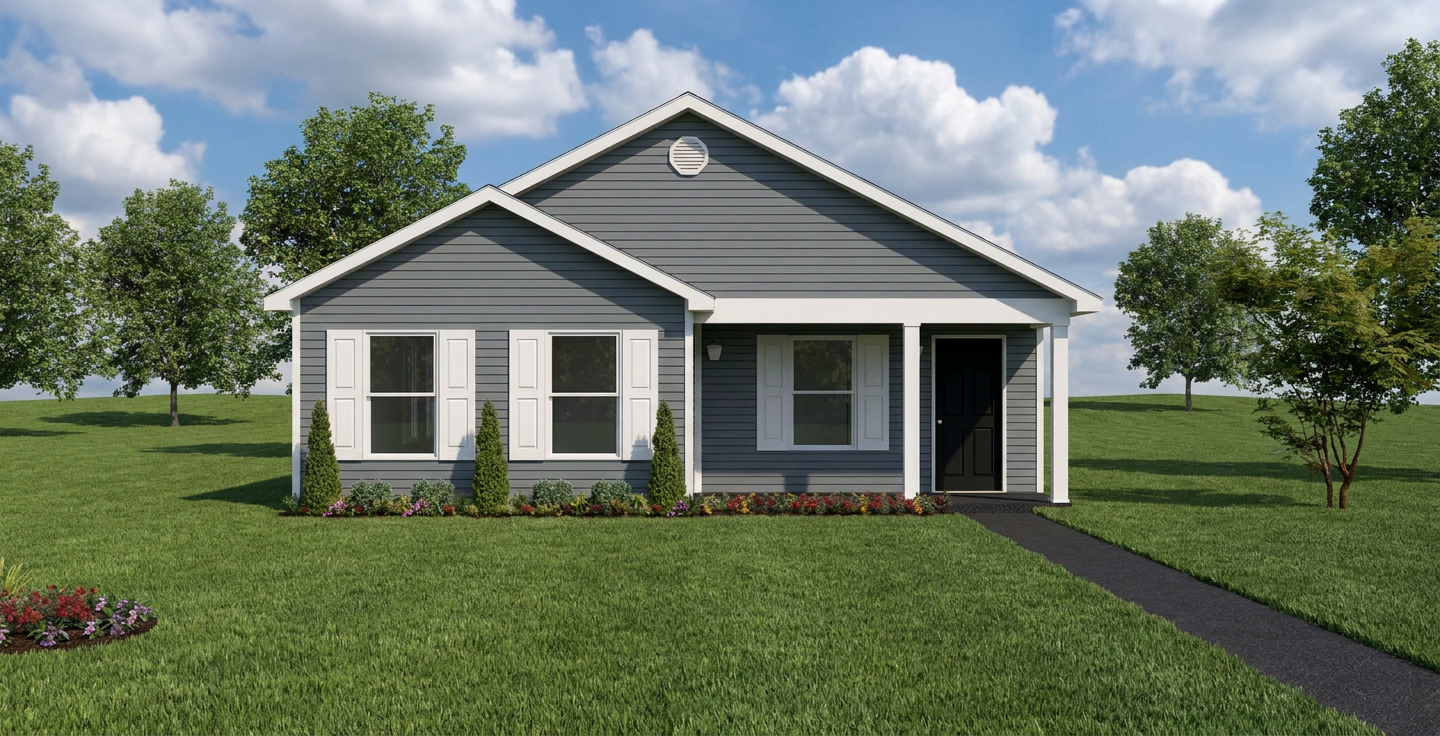

Plan# J0814-12d

Narrow lot plan

1 bedroom / 1.5 bath
Living area: 1720 sq. ft.
Other: 73 sq. ft.
Total: 1793  sq. ft.

Each unit Living area: 860 sq. ft.

Width: 30'-0"   Depth: 60'-0"

View floor plan

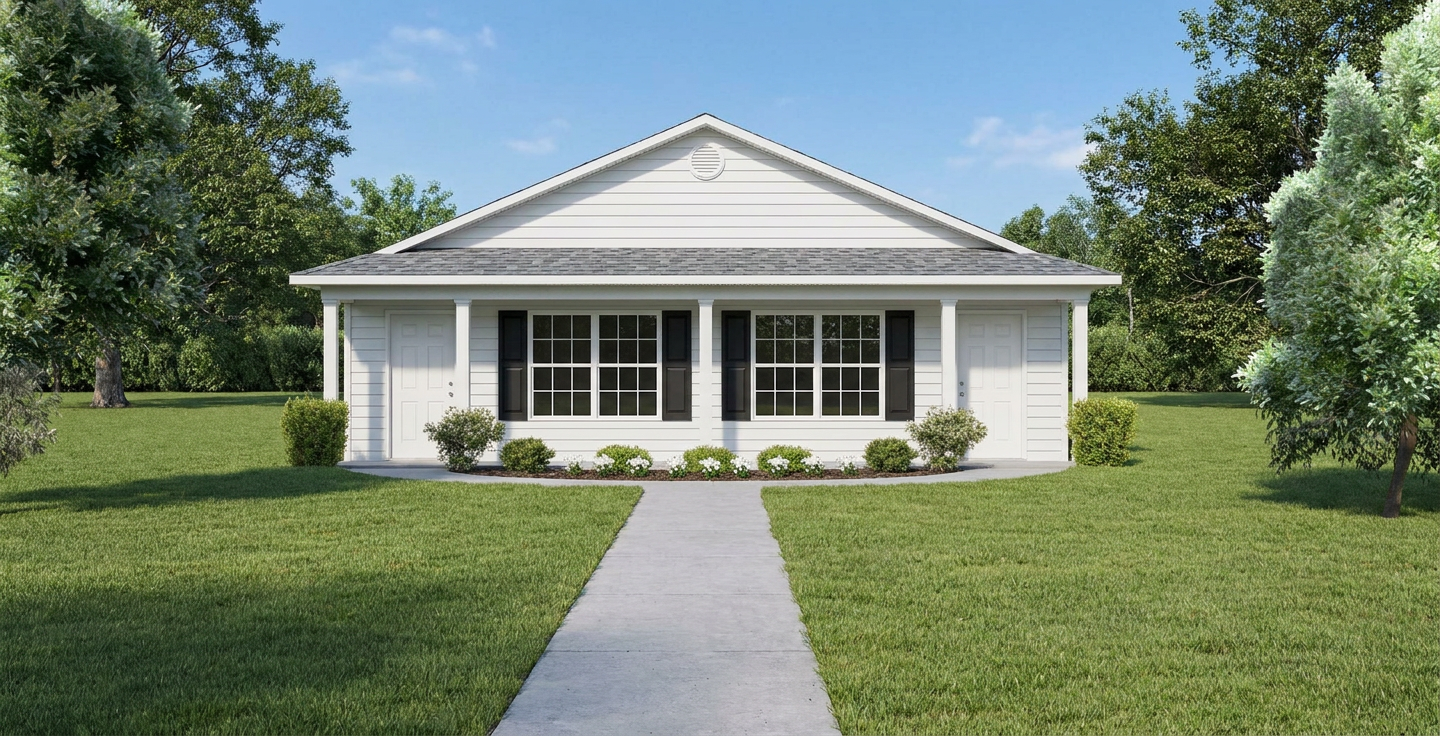

Plan# J1103-11d

Efficient duplex - Narrow lot

Bedrooms: 1    Bath: 1
Living area: 1088 sq. ft.
Other: 128 sq. ft.
Total: 1216  sq. ft.

Each unit Living area: 544 sq. ft.

Width: 32'-0"   Depth: 38'-0"

View floor plan

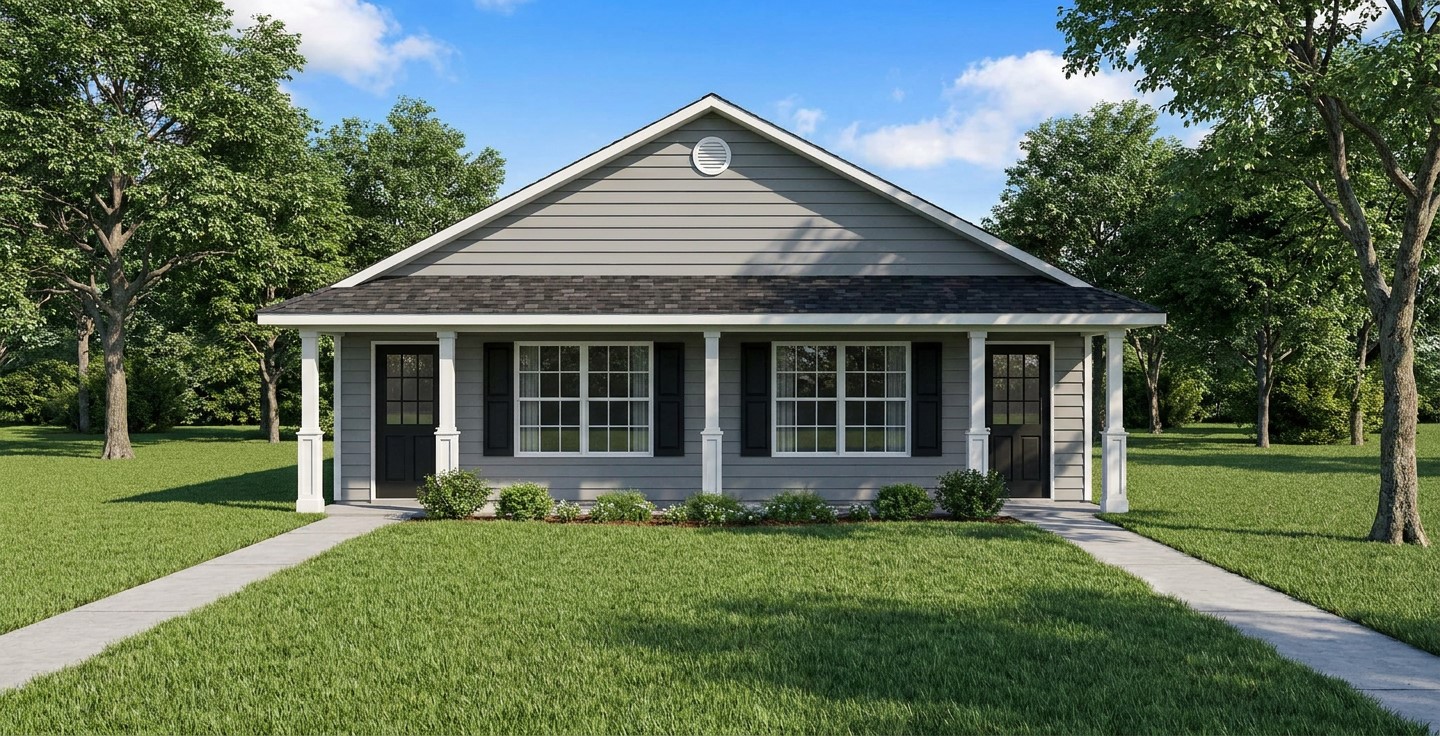

Plan# J0929-11d

Narrow lot plan

Bedrooms: 1    Bath: 1
Living area: 1450 sq. ft.
Other: 160 sq. ft.
Total: 1610  sq. ft.

Each unit Living area: 725 sq. ft.

Width: 32'-0"   Depth: 50'-4"

View floor plan

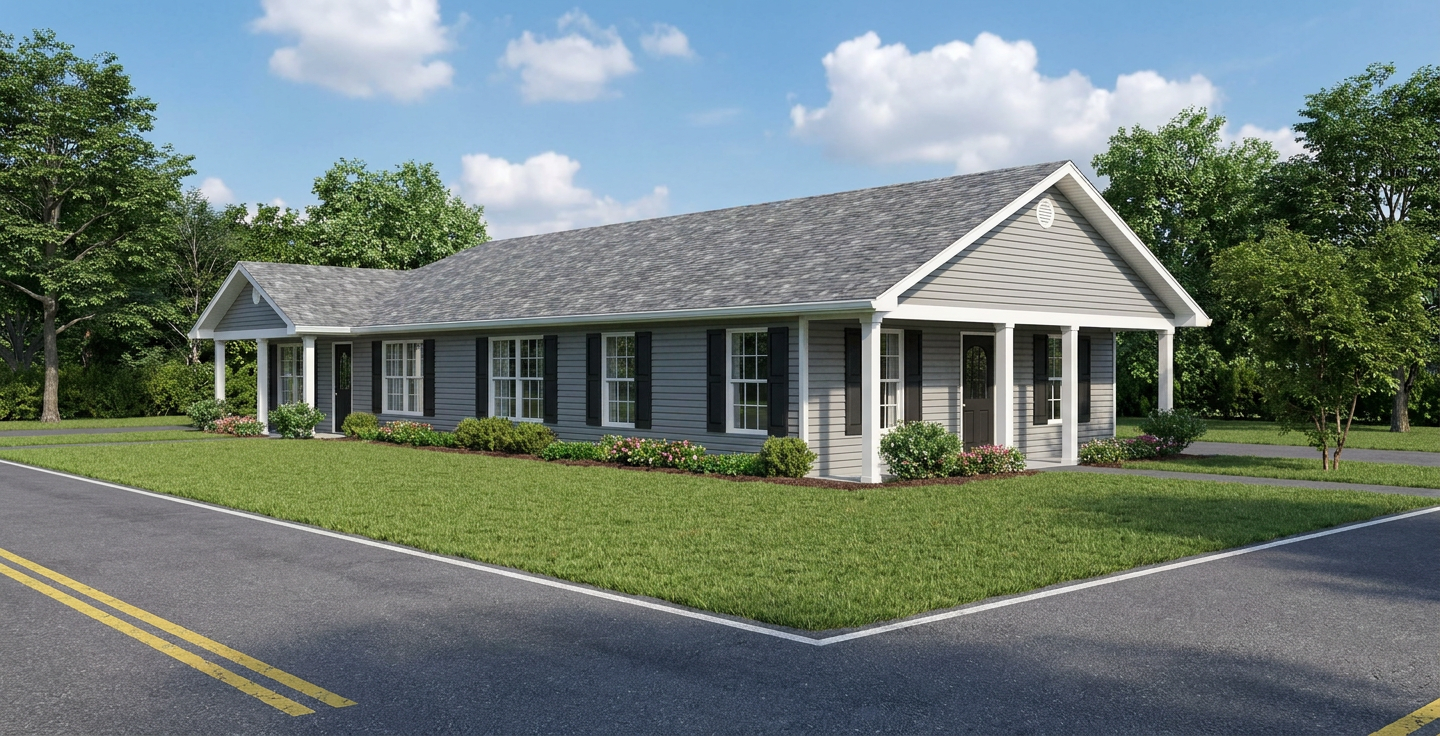

Plan# J0803d

Designed for narrow / corner lots

Bedrooms: 1    Bath: 1
Living area: 1582 sq. ft.
Other: 166 sq. ft.
Total: 1748  sq. ft.

Each unit Living area: 791 sq. ft.

Width: 30'-0"   Depth: 64'-0"

View floor plan

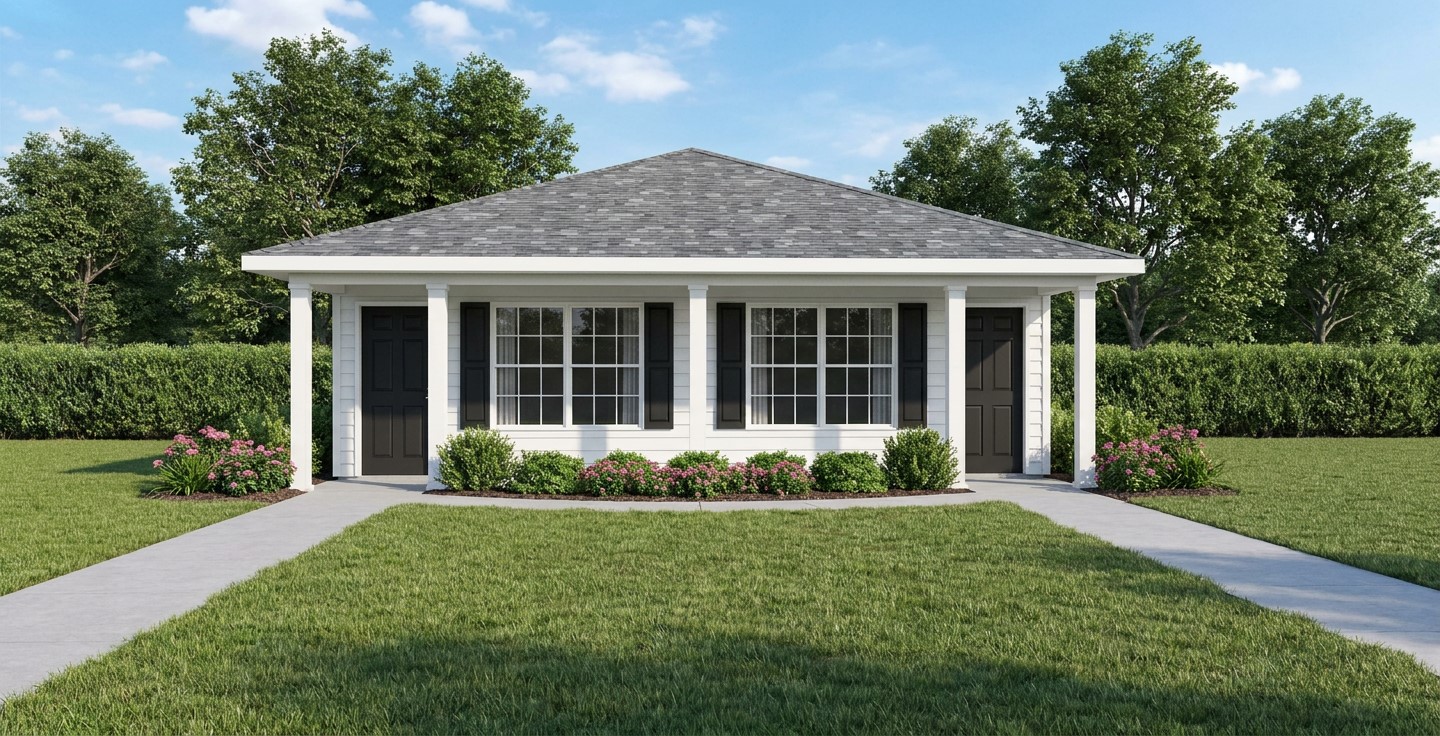

Plan# J0203-11d

Designed for narrow lots

Bedrooms: 1    Bath: 1
Living area: 1680 sq. ft.
Other: 168 sq. ft.
Total: 1848  sq. ft.
*areas shown above are per unit

Each unit Living area: 840 sq. ft.

Width: 28'-0"   Depth: 66'-0"

View floor plan

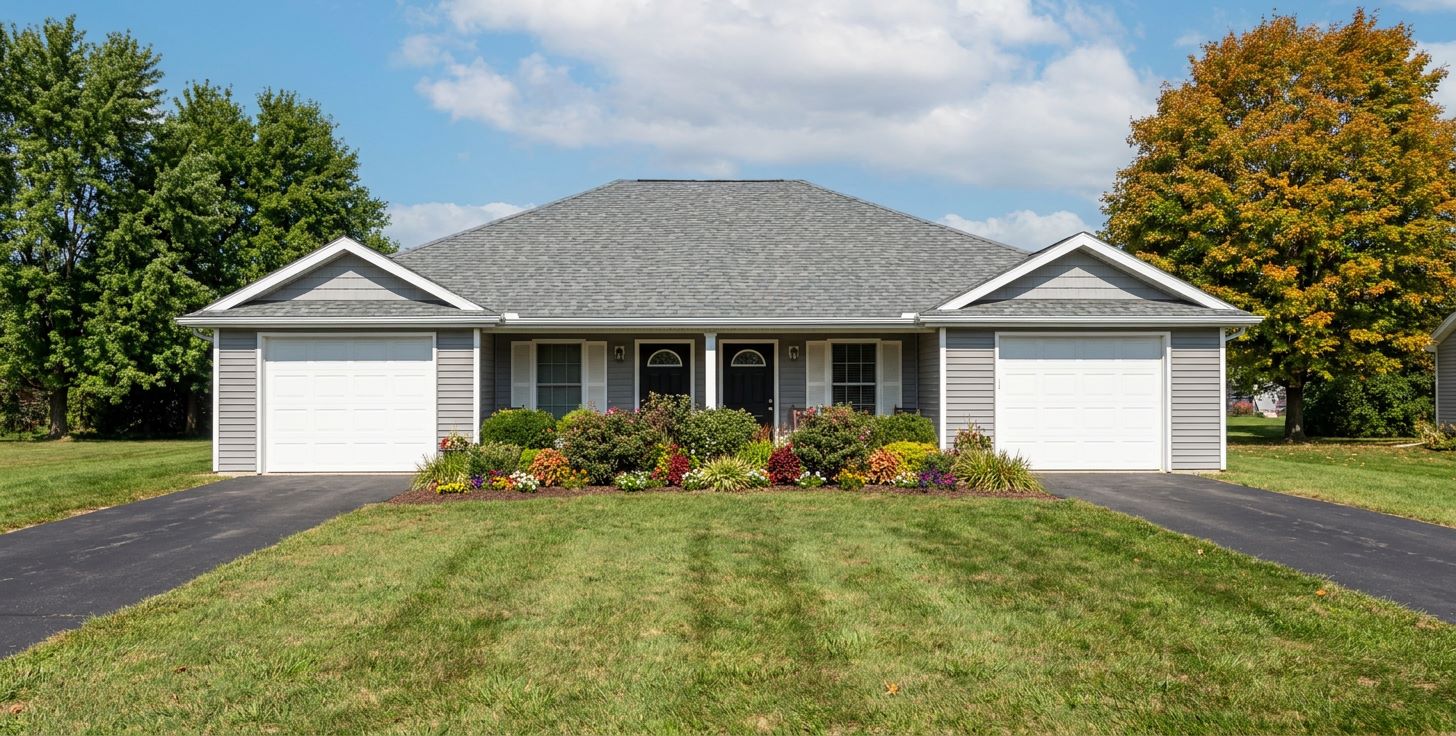

Plan# J696d

Garage per unit

Bedrooms: 1    Bath: 1
Living area: 1392 sq. ft.
Other: 638 sq. ft.
Total: 2030  sq. ft.

Each unit Living area: 696 sq. ft.

Width: 50'-0"   Depth: 41'-0"

View floor plan

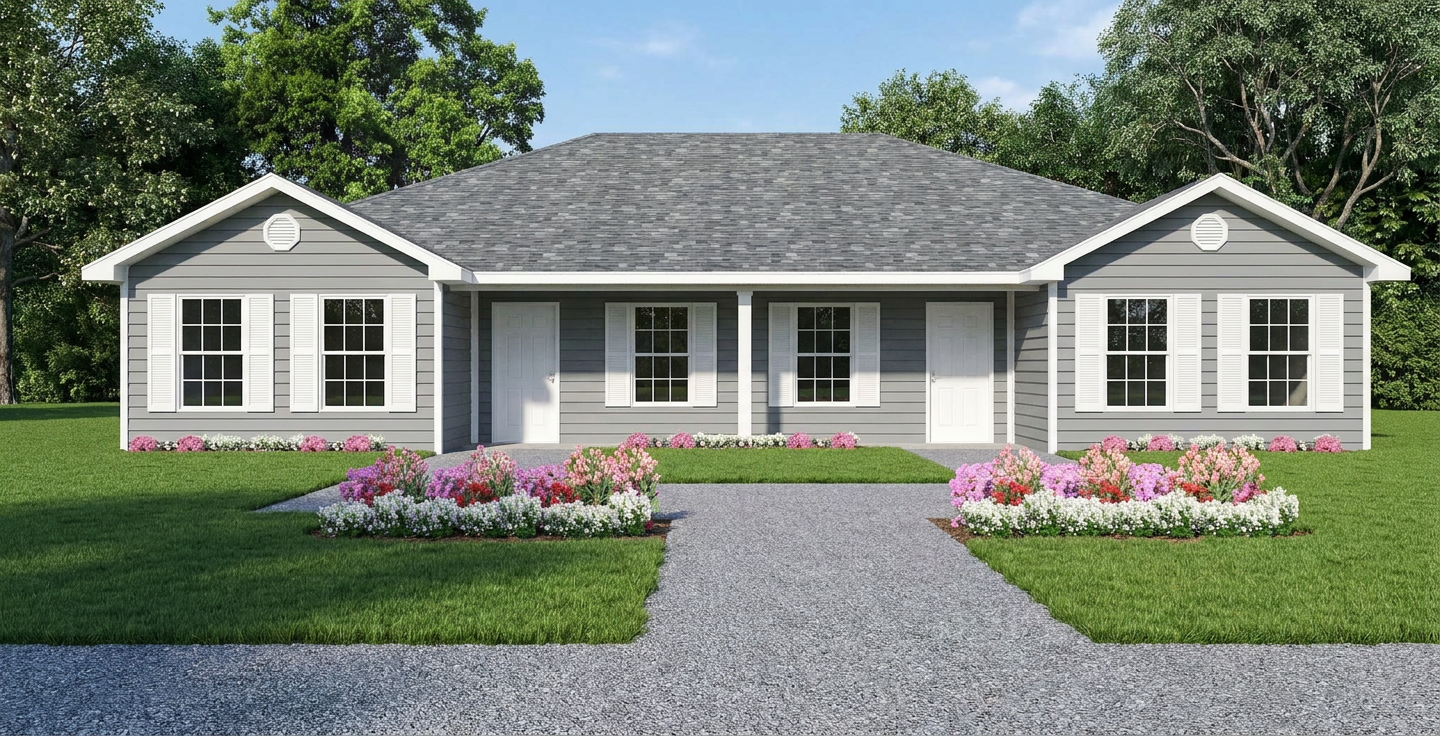

Plan# J810d

Bedrooms: 1    Bath: 1
Living area: 1620 sq. ft.
Other: 262 sq. ft.
Total: 1882  sq. ft.


Each unit Living area: 810 sq. ft.

Width: 52'-2"   Depth: 37'-5"

View floor plan

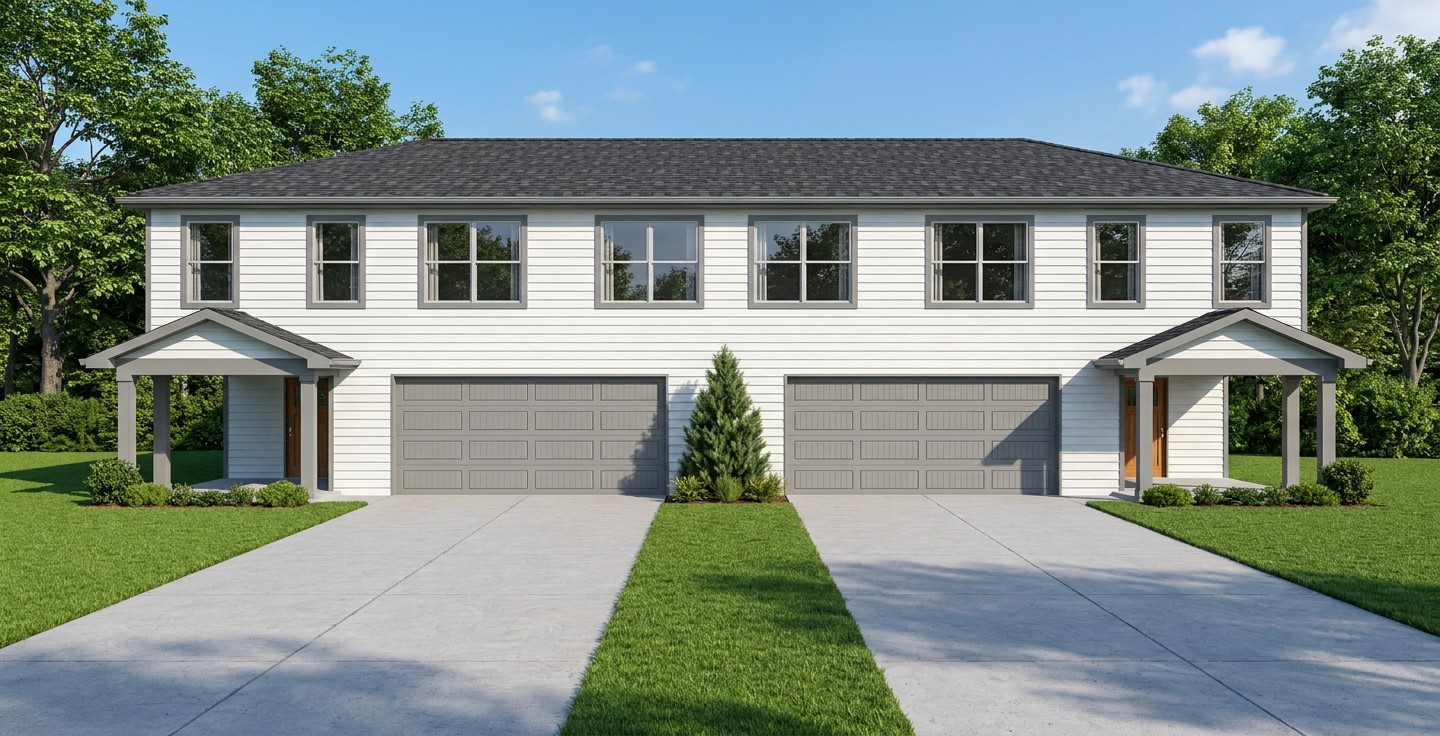

Plan# J1011g-d

Garage per unit

Bedrooms: 1    Bath: 1
Living area: 1011 sq. ft.
Garage = 561 sq. ft.
Porch = 168  sq. ft.
Total: 1740 sq. ft.

*Note: Main apartment on 2nd floor = 798 sq. ft. Living shown above includes 1st floor entry. All areas are per unit.

Width: 67'-4"   Depth: 30'-8"

View floor plan

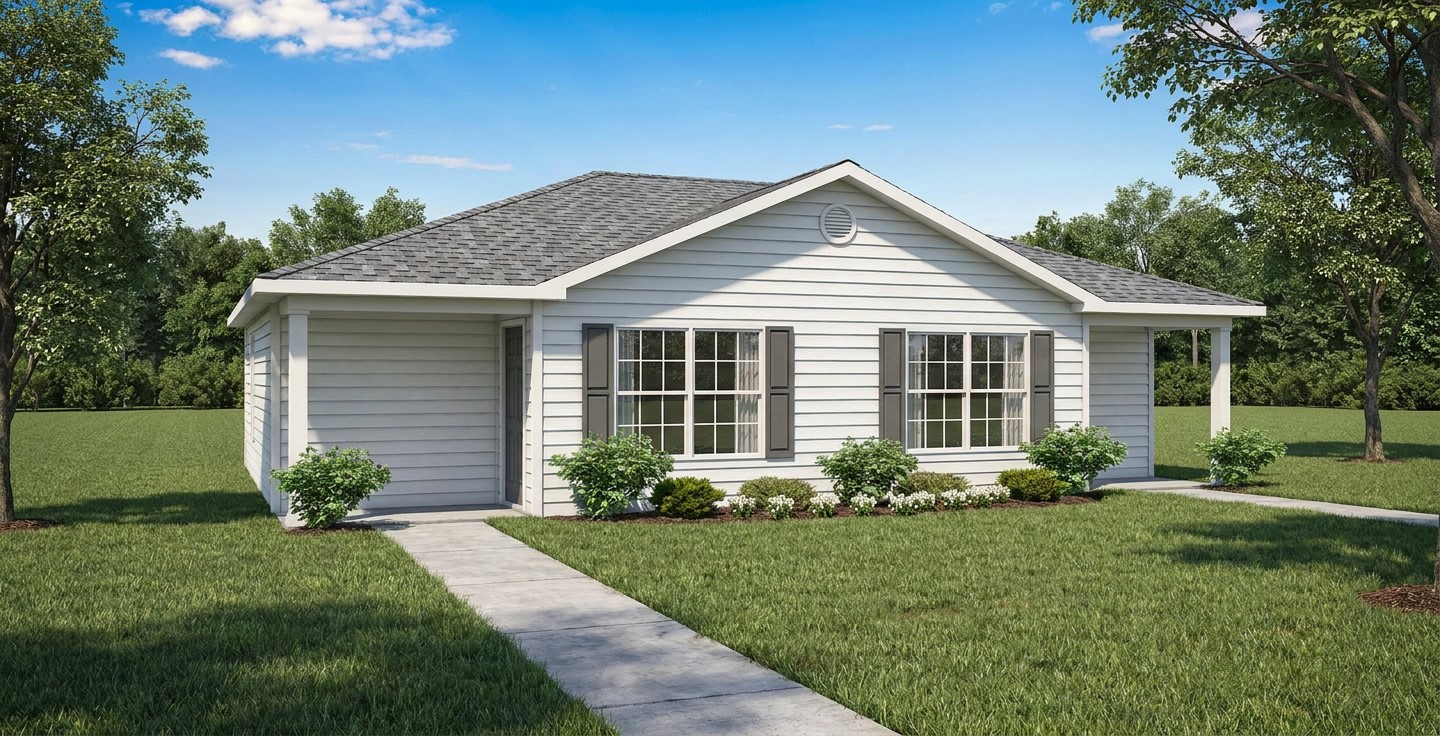

Plan# J0204-12d

Bedrooms: 1    Bath: 1
Living area: 1120 sq. ft.
Other: 80 sq. ft.
Total: 1200  sq. ft.

Each unit Living area: 560 sq. ft.

Width: 40'-0"   Depth: 30'-0"

View floor plan
