Plan number and image
|
Description of units
|
Plan# J0505-17d-2 |
|
Open layout |
Bedrooms: 2 Bath: 1
Living area: 1755 sq. ft.
Other: 147 sq. ft.
Total: 1902 sq. ft.
Each unit Living area: ~877 sq. ft.
Width: 80'-0" Depth: 34'-0"
View floor plan
|
|
|

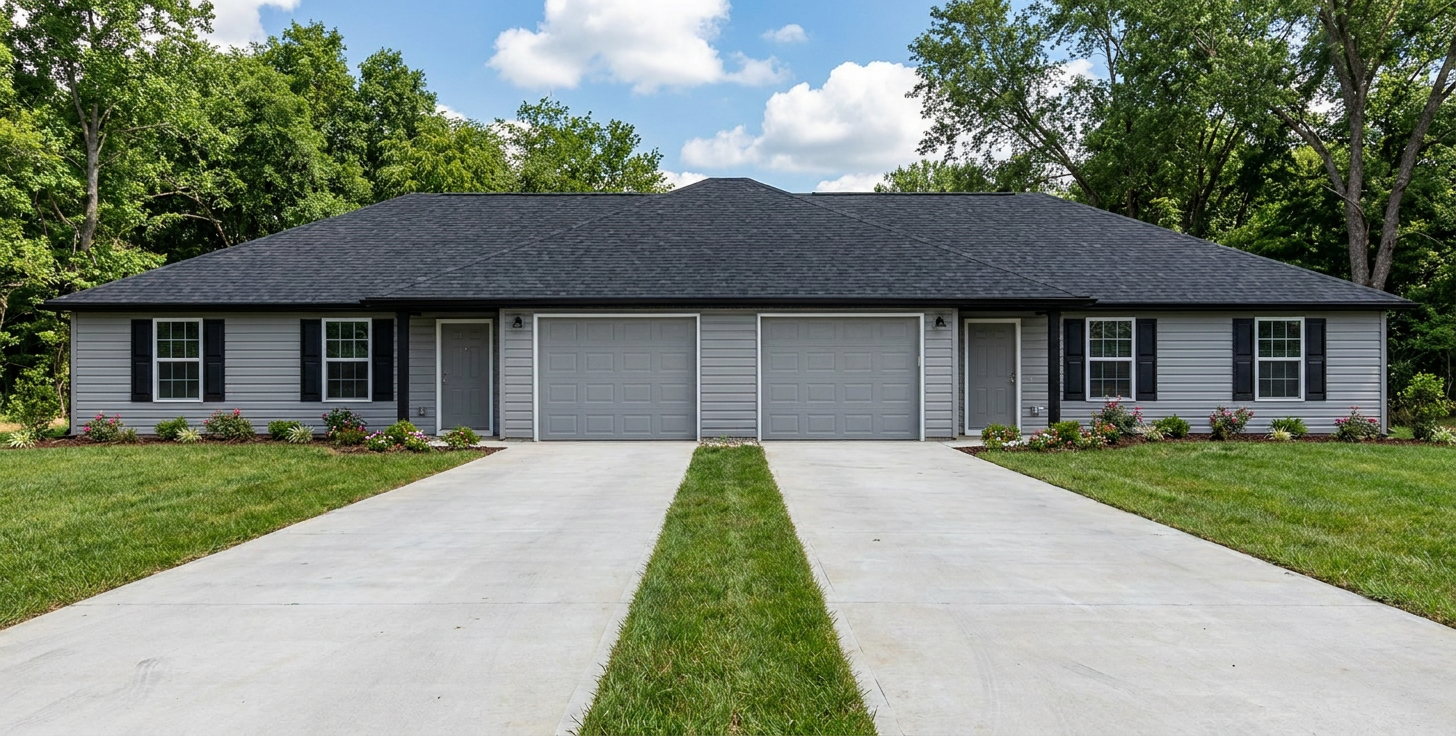

Plan# J1313d-2 |
|
Duplex: garage per unit |
Bedrooms: 2 Bath: 1.5
Living area: 2080 sq. ft.
Other: 592 sq. ft.
Total: 2672 sq. ft.
Each unit Living area: 1040 sq. ft.
Width: 77'-4" Depth: 36'-0"
View floor plan
|
|
|
Plan# J0505-17d |
|
Duplex: 1-over-1 |
Bedrooms: 2 Bath: 1
Living area: 1752 sq. ft.
Other: 148 sq. ft.
Total: 1900 sq. ft.
Each unit Living area: 876 sq. ft.
Width: 40'-0" Depth: 34'-0" (not including stairs)
View floor plan
|
|
|

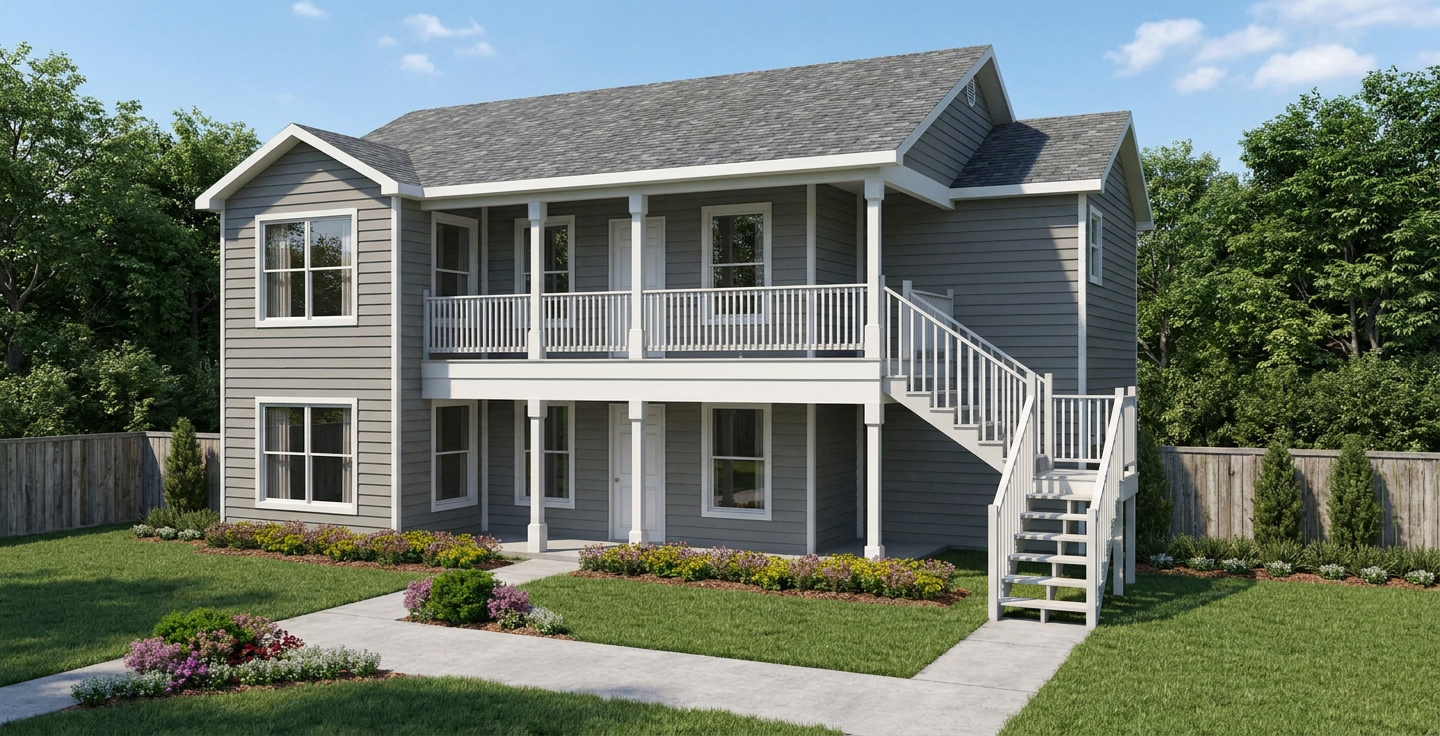

Plan# J0328-18d |
|
Duplex: 1-over-1 |
Bedrooms: 2 Bath: 1
Living area: 1879 sq. ft.
Other: 392 sq. ft.
Total: 2271 sq. ft.
Each unit Living area: ~939 sq. ft.
Width: 40'-0" Depth: 35'-0" (not including stairs)
View floor plan
|
|
|
Plan# J778d-21 |
|
Duplex w/ brick exterior |
Bedrooms: 2 Bath: 1
Living area: 1663 sq. ft.
Other: 98 sq. ft.
Total: 1761 sq. ft.
Each unit living area ~ 831 sq. ft.
Width: 52'-10" Depth: 33'-6"
View floor plan
|
|
|
Plan# J0605-14d |
|
Duplex w/ open concept |
Bedrooms: 2 Bath: 1
Living area: 1798 sq. ft.
Other: 106 sq. ft.
Total: 1904 sq. ft.
Each unit Living area: 899 sq. ft.
Width: 50'-8" Depth: 40'-0"
View floor plan
|
|
|

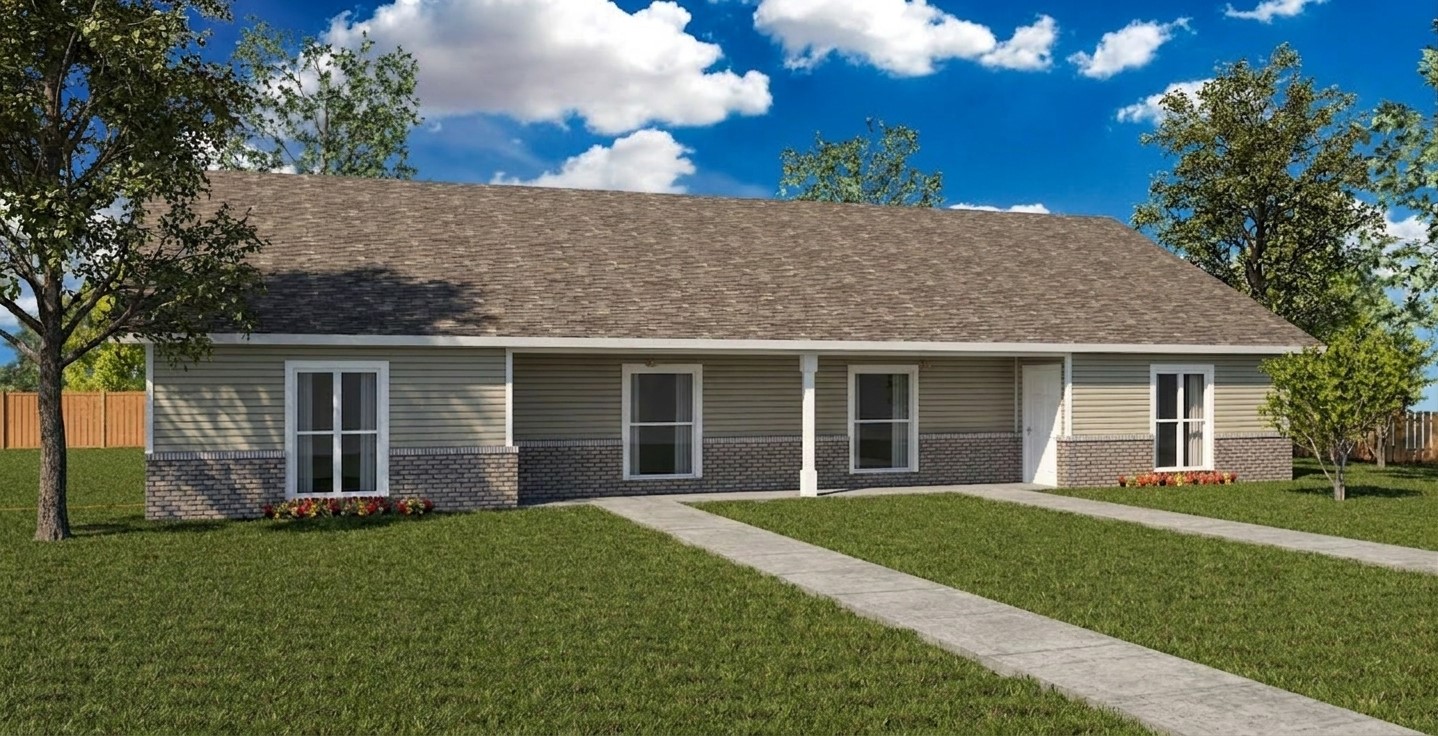

Plan# S0213d |
|
Duplex w/ open concept |
Bedrooms: 2 Bath: 1
Living area: 2270 sq. ft.
Other: 271 sq. ft.
Total: 2541 sq. ft.
Each unit Living area: 1135 sq. ft.
Width: 63'-7" Depth: 39'-8"
View floor plan
|
|
|
Plan#
J0216-18d |
|
Duplex w/ garage |
Bedrooms: 2 Bath: 1
Living area: 1704 sq. ft.
Other: 674 sq. ft.
Total: 2378 sq. ft.
Each unit Living area: 852 sq. ft.
Width: 60'-0" Depth: 50'-0"
View floor plan
|
|
|
Plan#
J1138d-2B |
|
Duplex |
Bedrooms: 2 Bath: 1
Living area: 2136 sq. ft.
Other: 138 sq. ft.
Total: 2274 sq. ft.
Each unit Living area: 1068 sq. ft.
Width: 25'-0" Depth: 45'-6"
View floor plan
|
|
|
Plan# J0324d |
|
Garage per unit
|
Bedrooms: 2 Bath: 2
Living area: 1892 sq. ft.
Other: 757 sq. ft.
Total: 2648 sq. ft.
*Note: Areas shown above are total building.
Each unit living area: 946 sq. ft.
Width: 56'-8" Depth: 51'-0"
Floor plan
|
|
|
Plan# J1019-16d |
|
Stone veneer: Front
|
Bedrooms: 2 Bath: 1
Living area: 1790 sq. ft.
Other: 98 sq. ft.
Total: 1888 sq. ft.
*Note: Areas shown above are total building.
Each unit living area: 895 sq. ft.
Width: 50'-0" Depth: 40'-0"
Floor plan
|
|
|

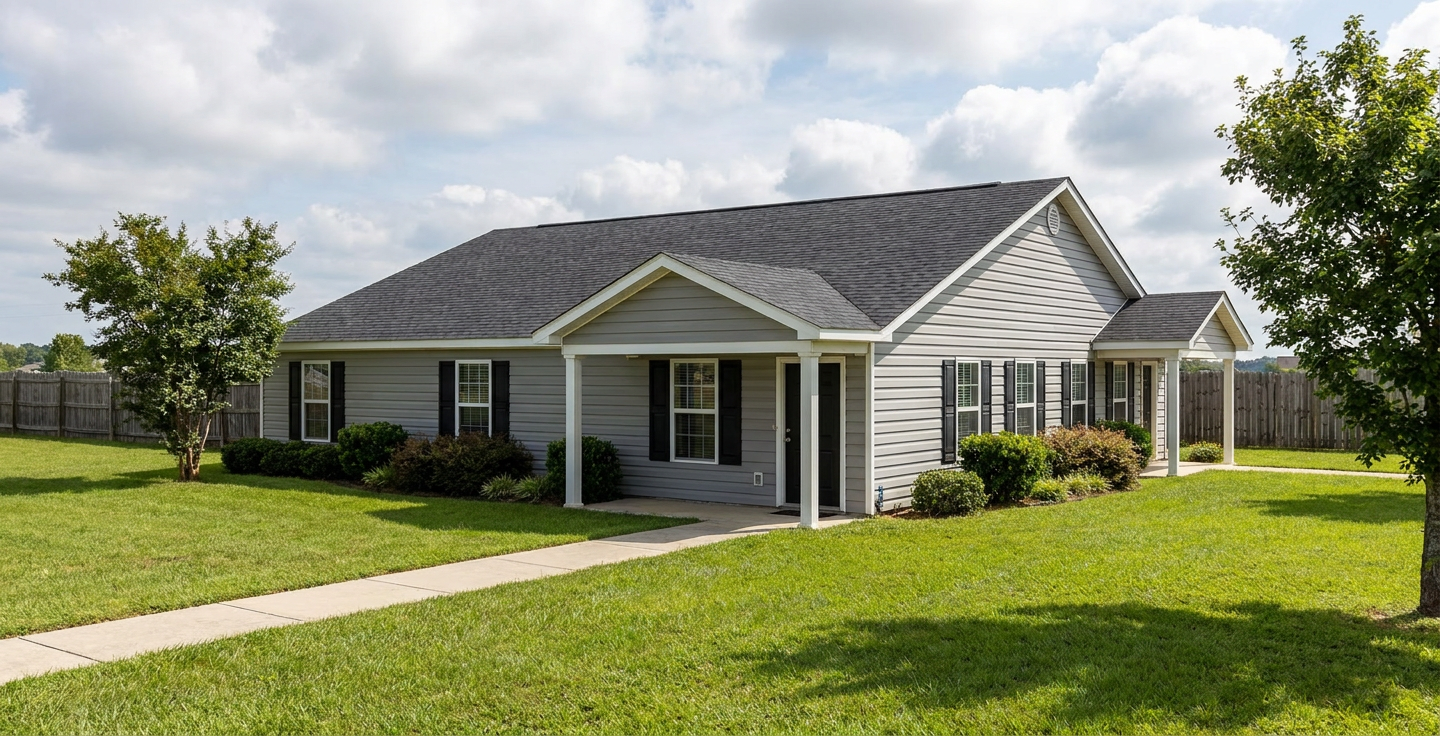

Plan# J0714-16d |
|
Duplex plan for corner lots
|
Bedrooms: 2 Bath: 2
Living area: 1935 sq. ft.
Other: 138 sq. ft.
Total: 2073 sq. ft.
*Note: Areas shown above are total building.
Each unit living area: ~967 sq. ft.
Width: 50'-0" Depth: 48'-0"
Floor plan
|
|
|
Plan# J778d-B |
|
Duplex plan to fit narrow lots
|
Bedrooms: 2 Bath: 1
Living area: 1664 sq. ft.
Other: 105 sq. ft.
Total: 1769 sq. ft.
*Note: Areas shown above are total building.
Each unit living area: 832 sq. ft.
Width: 53'-9" Depth: 34'-5"
Floor plan
|
|
|

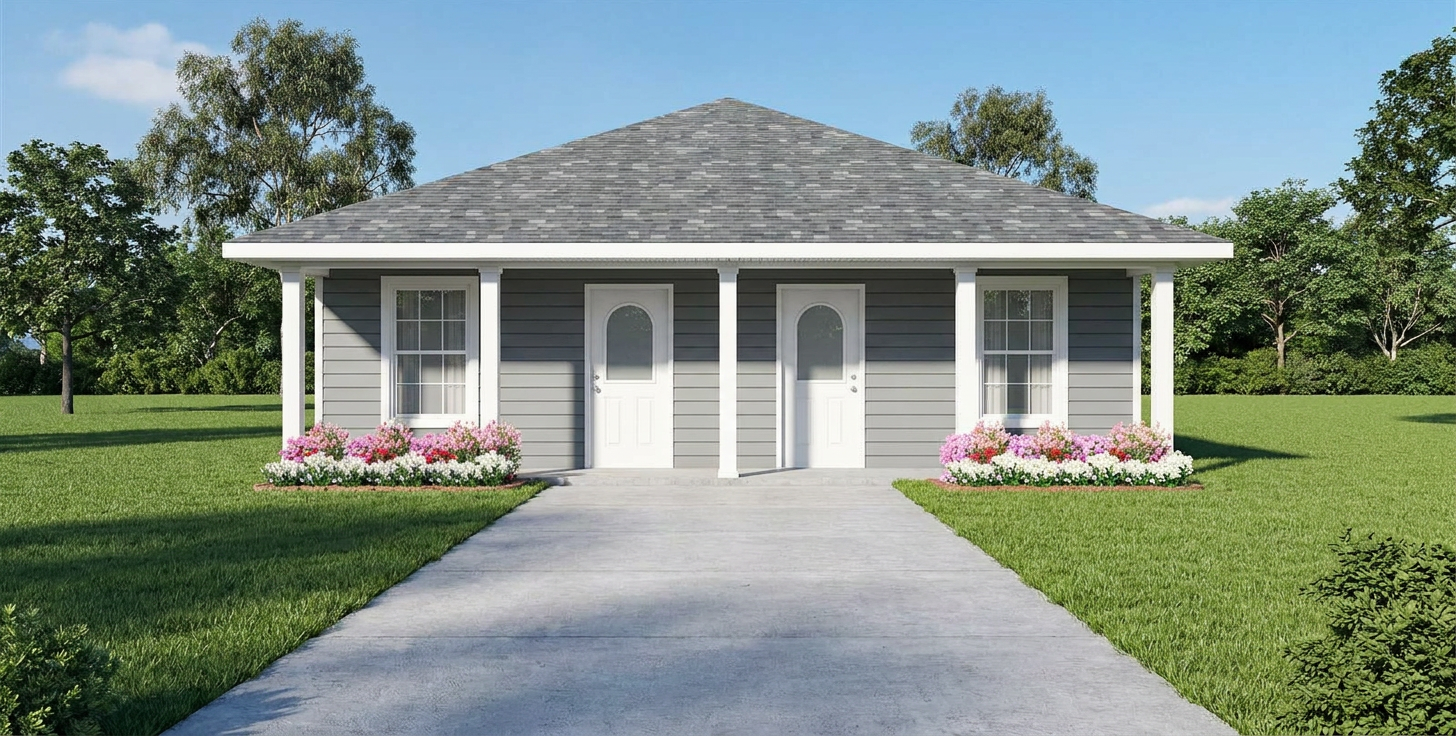

Plan#
J1690-15d |
|
Duplex plan to fit narrow lots
|
Bedrooms: 2 Bath: 2
Living area: 1675 sq. ft.
Other: 135 sq. ft.
Total: 1810 sq. ft.
*Note: Areas shown above are total building.
Each unit living area: ~ 837 sq. ft.
Width: 30'-0" Depth: 64'-4"
Floor plan
|
|
|
Plan#
J1024-14d |
|
Duplex plan with a garage per unit
|
Bedrooms: 2 Bath: 1
Living area: 1220 sq. ft.
Other: 350 sq. ft.
Total: 1370 sq. ft.
*Note: Areas shown above are per unit.
Total building living area: = 2040 sq. ft.
Width: 68'-11" Depth: 45'-5"
Floor plan
|
|
|
Plan#
J891-14d |
|
Popular design
Duplex floor plan with open layout |
Bedrooms: 2 Bath: 1
Living area: 844 sq. ft.
Other: 106 sq. ft.
Total: 950 sq. ft.
*Note: Areas shown above are per unit.
Total building living area: = 1688 sq. ft.
Width: 54'-4" Depth: 38'-0"
Floor plan
|
|
|
Plan#

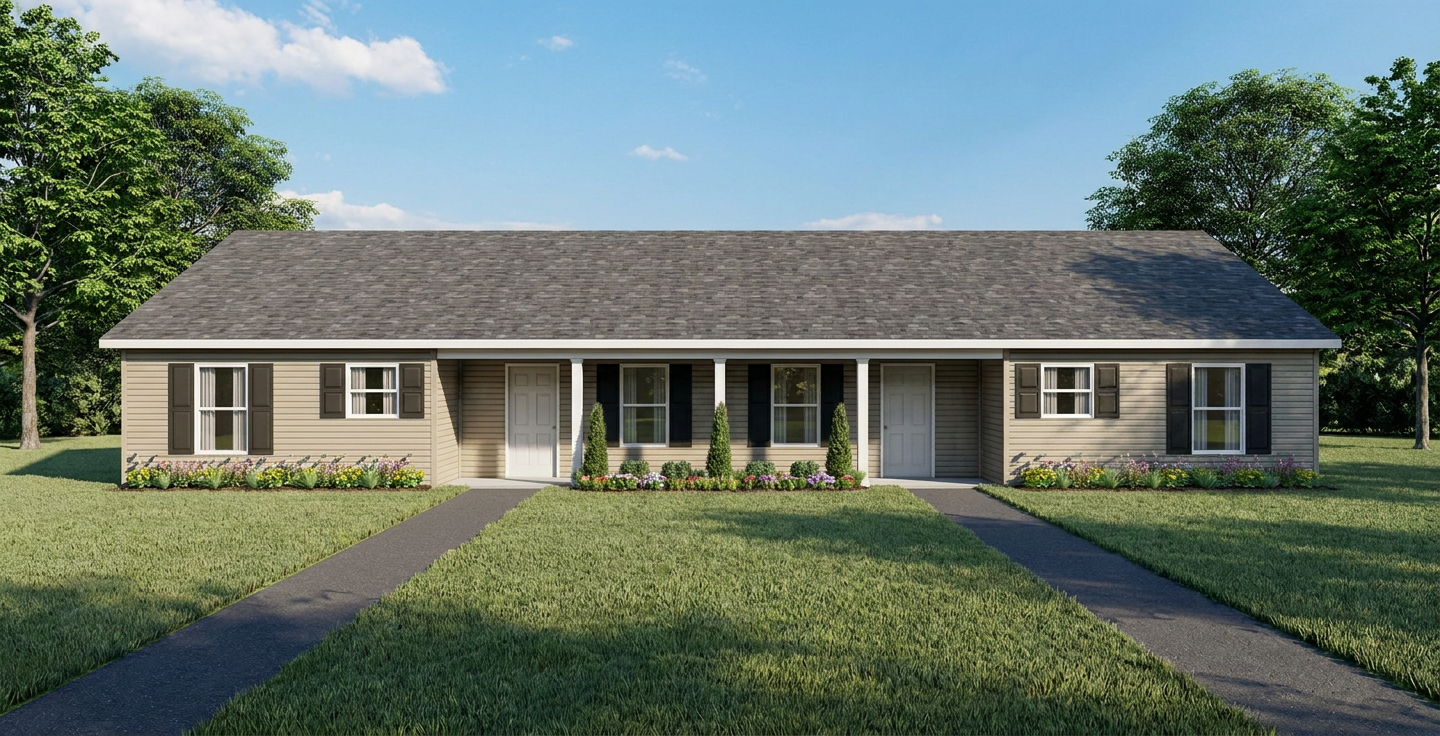

J0423-14d |
|
Duplex floor plan with open layout
|
Bedrooms: 2 Bath: 2
Living area: 1026 sq. ft.
Other: 144 sq. ft.
Total: 1090 sq. ft.
*Note: Areas shown above are per unit.
Total building living area: = 2052 sq. ft.
Width: 65'-0" Depth: 36'-0"
Floor plan
|
|
|
Plan#
J891d |
|
Best seller!
Also see: 4-plex J891-4 /
Triplex J891T |
Bedrooms: 2 Bath: 2
Living area: 891 sq. ft.
Other: 46 sq. ft.
Total: 937 sq. ft.
*Note: Areas shown above are per unit.
Total building living area: = 1782 sq. ft.
Width: 52'-8" Depth: 39'-6"
Floor plan
|
|
|
Plan#
J0222-13d-2 |
|
Duplex w/ single garage per unit |
Bedrooms: 2 Bath: 2
Living area: 1990 SF
Garages = 736 SF
Porch = 120 SF
Storage = 90 SF
Total: 2836 SF
Each unit Living area: 945 sq. ft.
Width: 68'-0" Depth: 45'-0"
Floor plan
|
|
|
Plan#

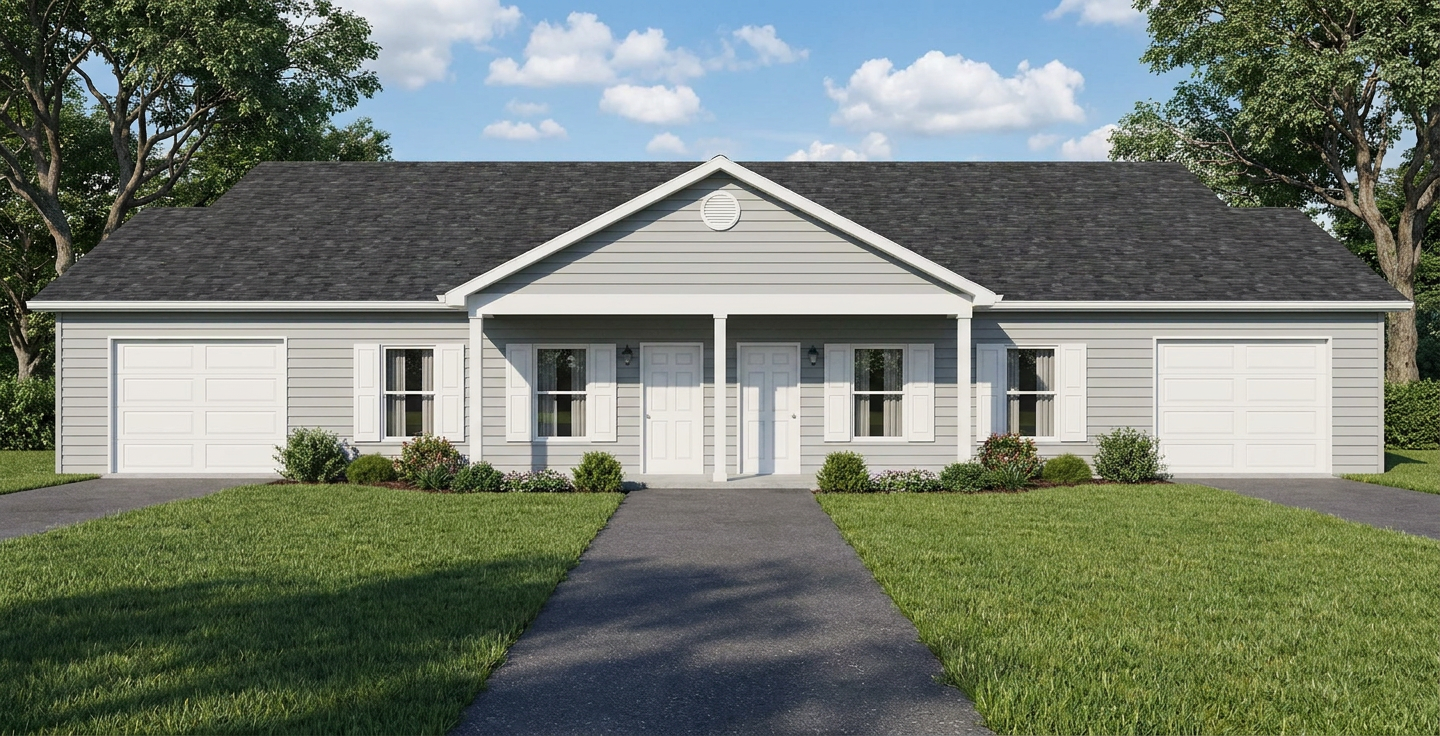

J0222-13d |
|
Duplex w/ single garage per unit |
Bedrooms: 2 Bath: 2
Living area: 1934 SF
Garages = 650 SF
Porch = 126 SF
Total: 2710 SF
Each unit Living area: 967 sq. ft.
Width: 68'-0" Depth: 45'-0"
Floor plan
|
|
|
Plan#
J0124-13d |
|
Duplex |
2 bedrooms / 1 bath
Living area: 1850 sq. ft.
Porch = 180 sq. ft.
Total footage per unit = 2030 sq. ft.
Each unit Living area: 925 sq. ft.
Width: 60'-0" Depth: 39'-0"
Floor plan
|
|
|

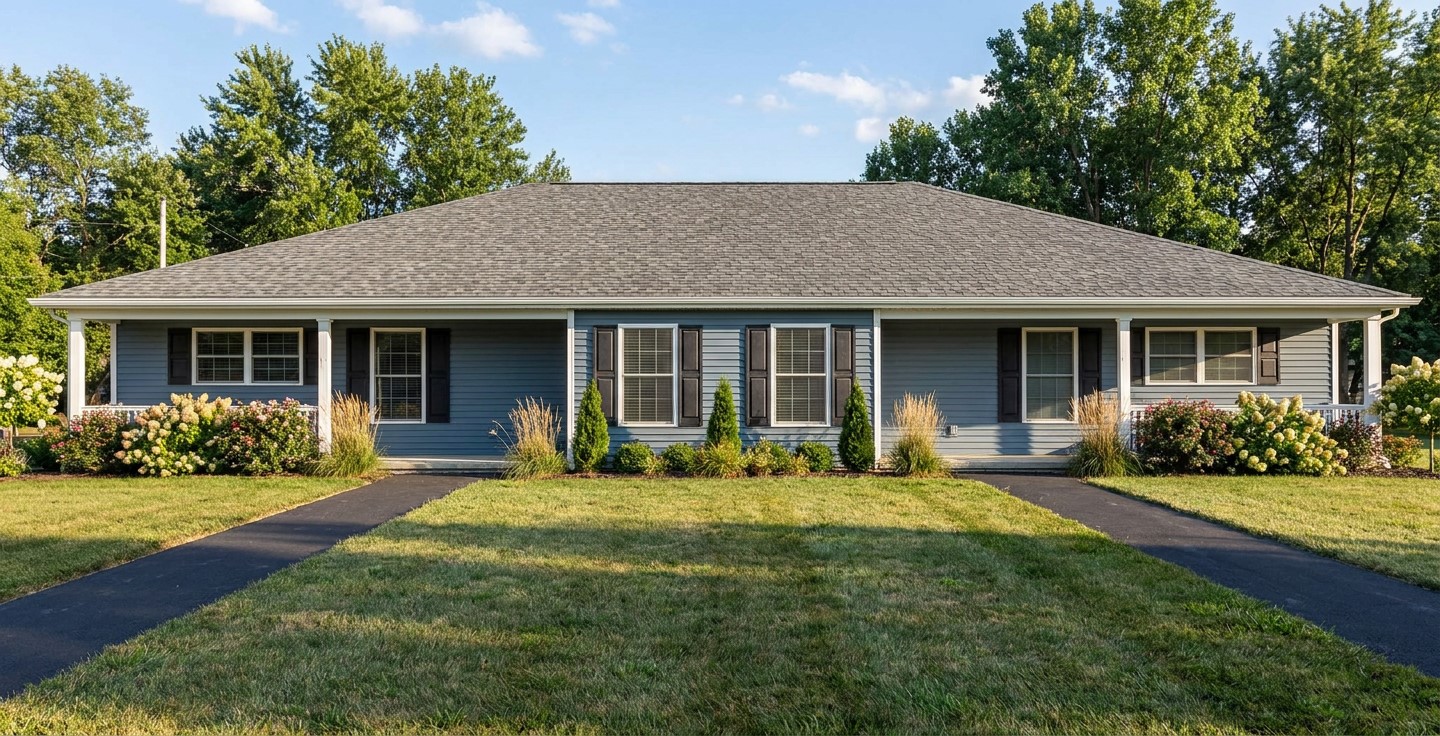

Plan#
J0607-12d |
|
Duplex |
Bedrooms: 2 Bath: 1
Living area: 1175 sq. ft. per unit
Porch = 125 sq. ft. per unit
Total footage per unit = 1300 sq. ft.
Total building Living area: 2350 sq. ft.
Width: 65'-0" Depth: 40'-0"
Floor plan
|
|
|
Plan# J748d-CP |
|
Duplex - Carport per unit
|
2 bedrooms / 1 bath
Living area: 1760 sq. ft.
Other: 588 sq. ft.
Total= 2348 sq. ft.
Note: Living area/unit: = 880 sq. ft.
Width: 67'-0" Depth: 44'-0"
Floor plan
|
|
|
Plan#
J0418-11d |
|
Efficient duplex |
2 bedrooms / 1.5 bath
Living area: 1742 sq. ft.
Porch = 129 sq. ft.
Total footage = 1871 sq. ft.
Note: Each unit contains 871 sq. ft. of living area.
Width: 55'-0" Depth: 34'-0"
Floor plan
|
|
|
Plan#
J0201-11d |
|
Single garage per unit - Efficient duplex |
2 bedrooms / 2 bath
Living area: 1222 sq. ft. per unit
Other: 327 sq. ft. per unit
Total footage per unit = 1549 sq. ft.
Total building Living area: 2444 sq. ft.
Width: 42'-0" Depth: 77'-6"
Floor plan
|
|
|
Plan#

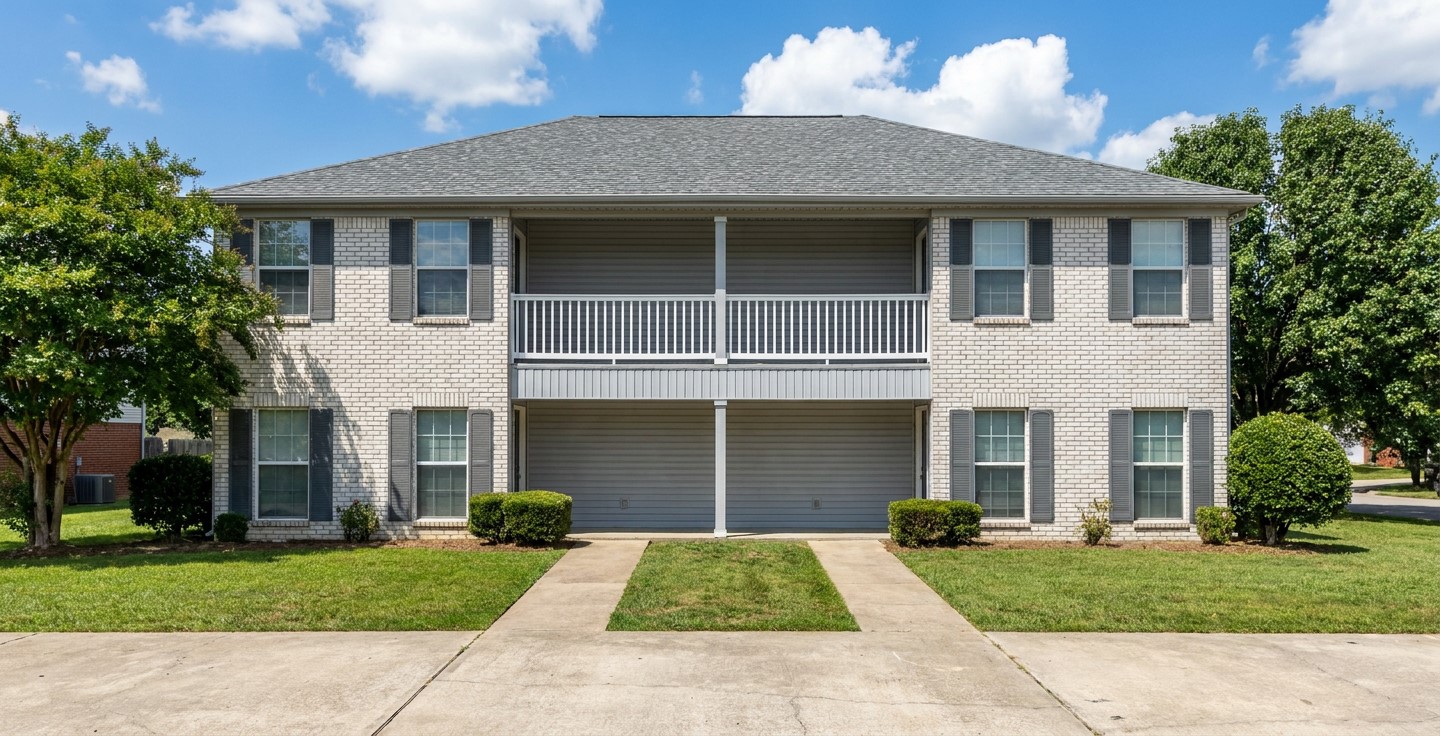

J0120-11d |
|
Townhouse-style duplex |
2 bedrooms / 2.5 bath
Living area: 1255 sq. ft. per unit
Porch = 122 sq. ft. per unit
Total footage per unit = 1377 sq. ft.
Total building Living area: 2510 sq. ft.
Width: 51'-0" Depth: 29'-8"
Floor plan
|
|
|
Plan#

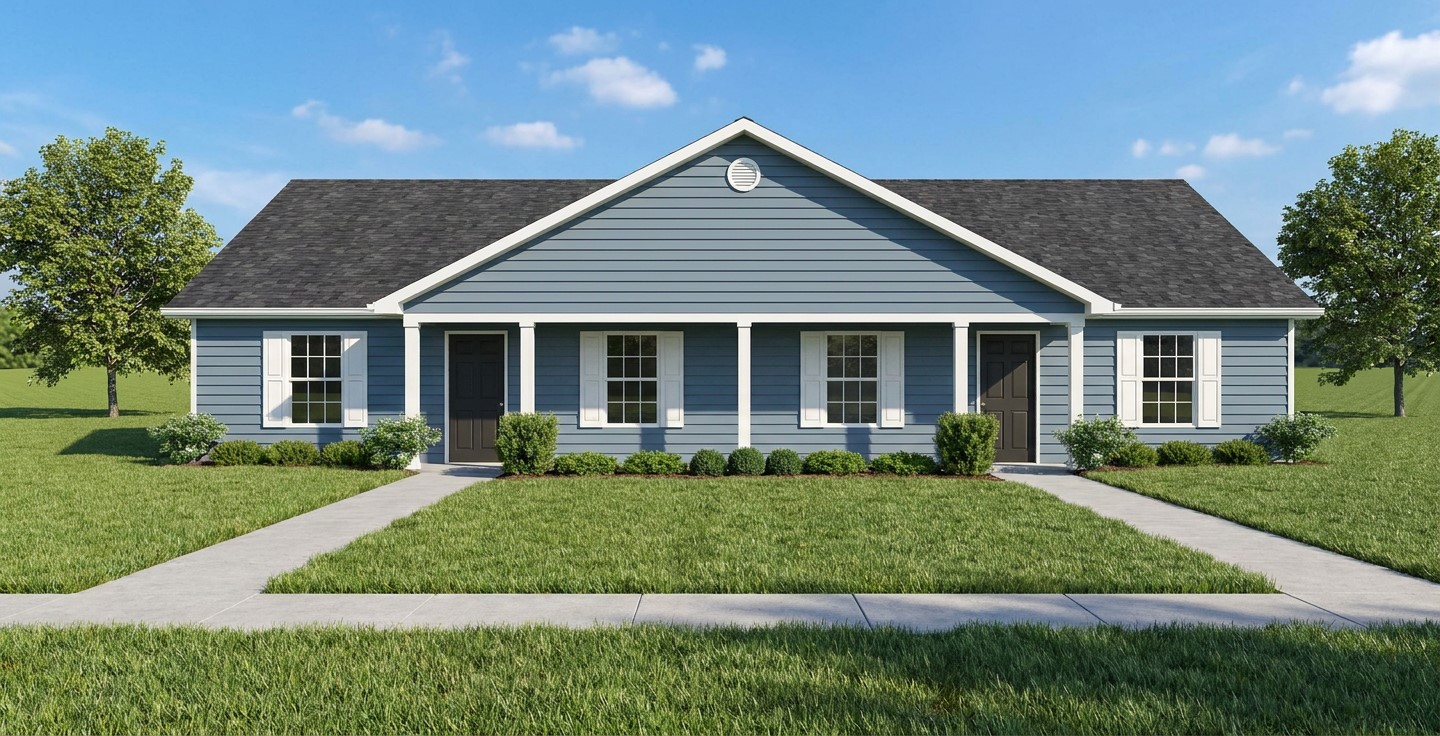

J1209-10d |
|
Garage per unit |
Bedrooms: 2 Bath: 2
Living area: 971 sq. ft.
Garage = 312 sq. ft.
Porch = 81 sq. ft.
Total: 1364 sq. ft.
Total building Living area: 2510 sq. ft.
Width: 56'-0" Depth: 56'-8"
Floor plan
|
|
|
Plan#
J1124-10d |
|
Townhouse-style duplex |
2 bedrooms / 1.5 bath
Living area: 1215 sq. ft. per unit
Porch = 52 sq. ft. per unit
Total footage per unit = 1267 sq. ft.
Total building Living area: 2430 sq. ft.
Width: 38'-0" Depth: 38'-10"
Floor plan
|
|
|

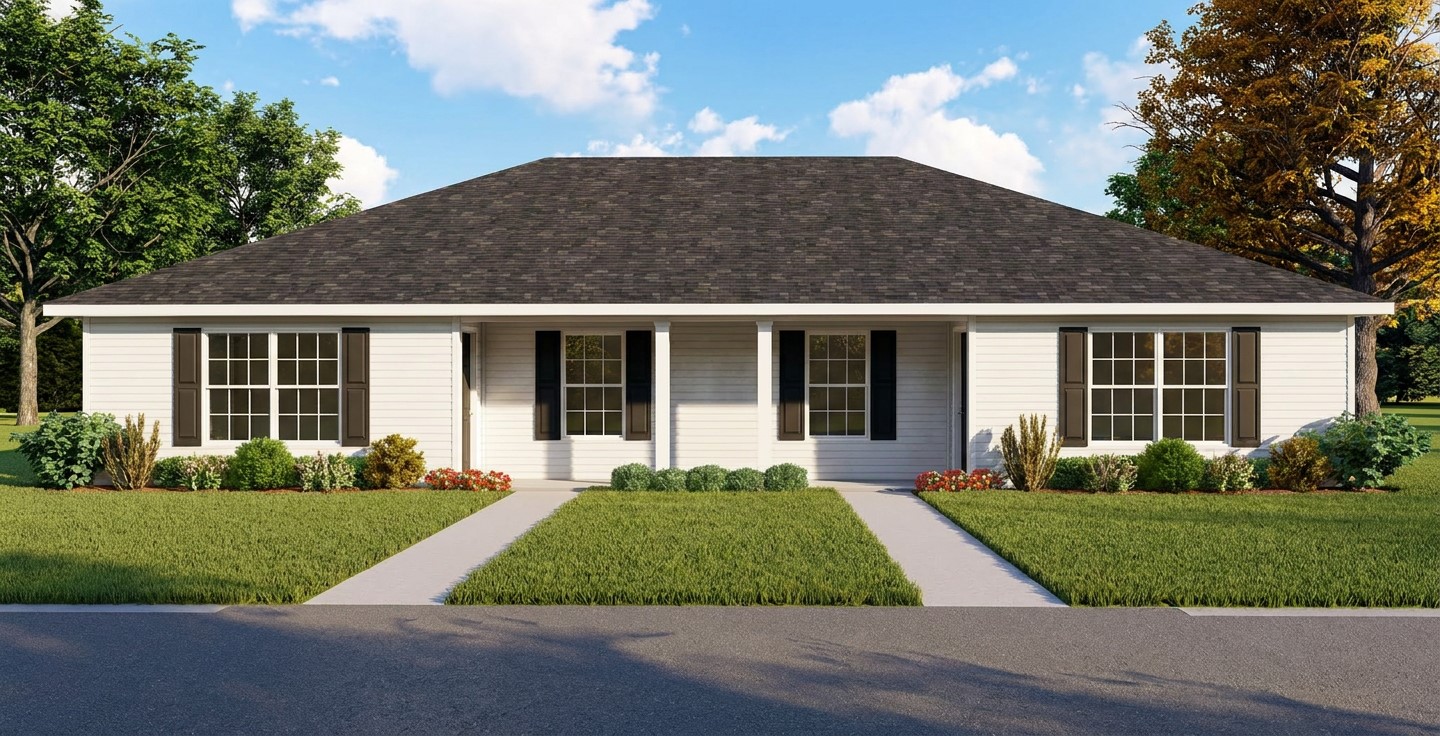

Plan#
J778d |
|
Duplex |
2 bedrooms / 1 bath
(Areas below are per unit)
Living area: 778 sq. ft.
Other: 100 sq. ft.
Total: 878 sq. ft.
Total building living area: = 1556
sq. ft.
Width: 52'-10" Depth: 33'-6"
Floor plan
|
|
|

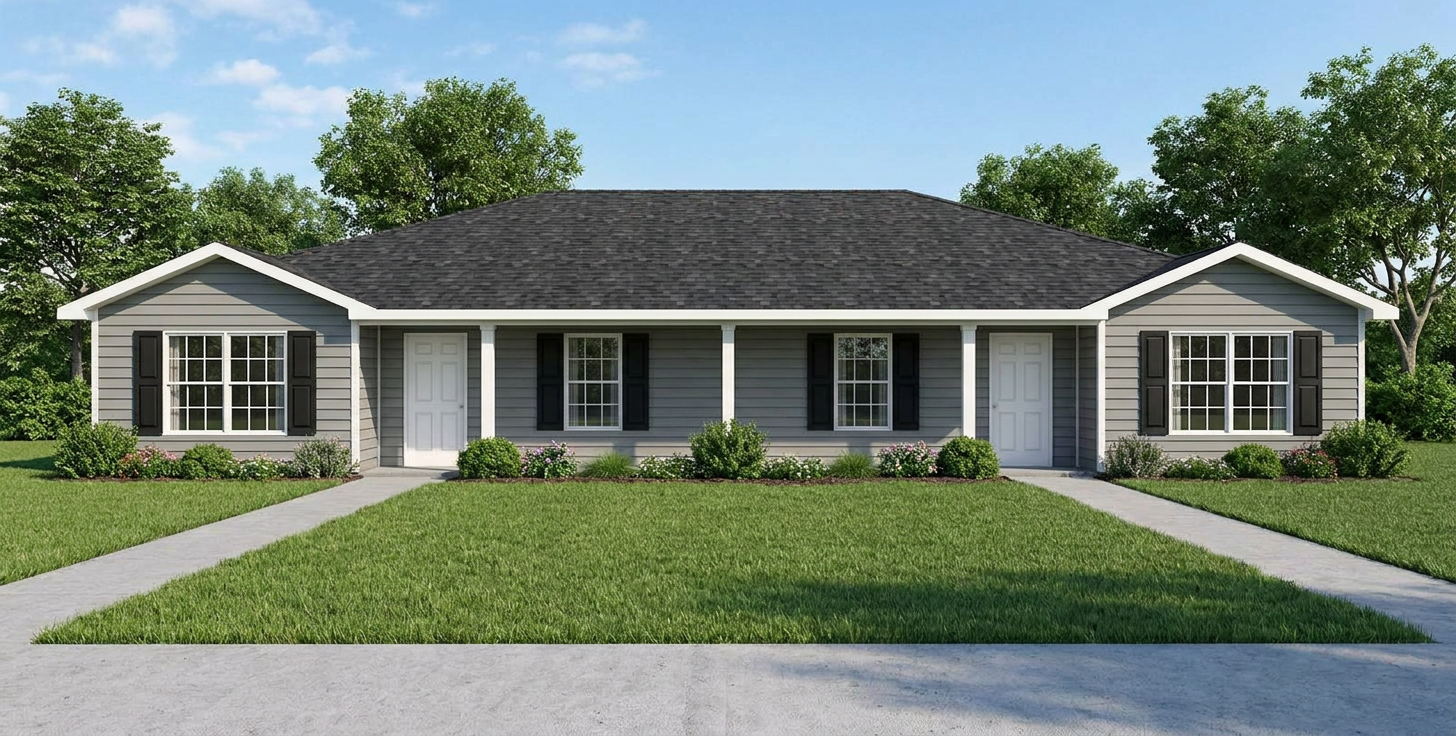

Plan#
J0904d |
|
Economical construction - Duplex |
2 bedrooms / 1 bath
Living area: 1995 sq. ft
Other: 269 sq. ft.
Total building footage = 2264 sq. ft.
Living area/unit: = 997 sq.
ft.
Width: 60'-0" Depth: 37'-8"
Floor plan
|
|
|

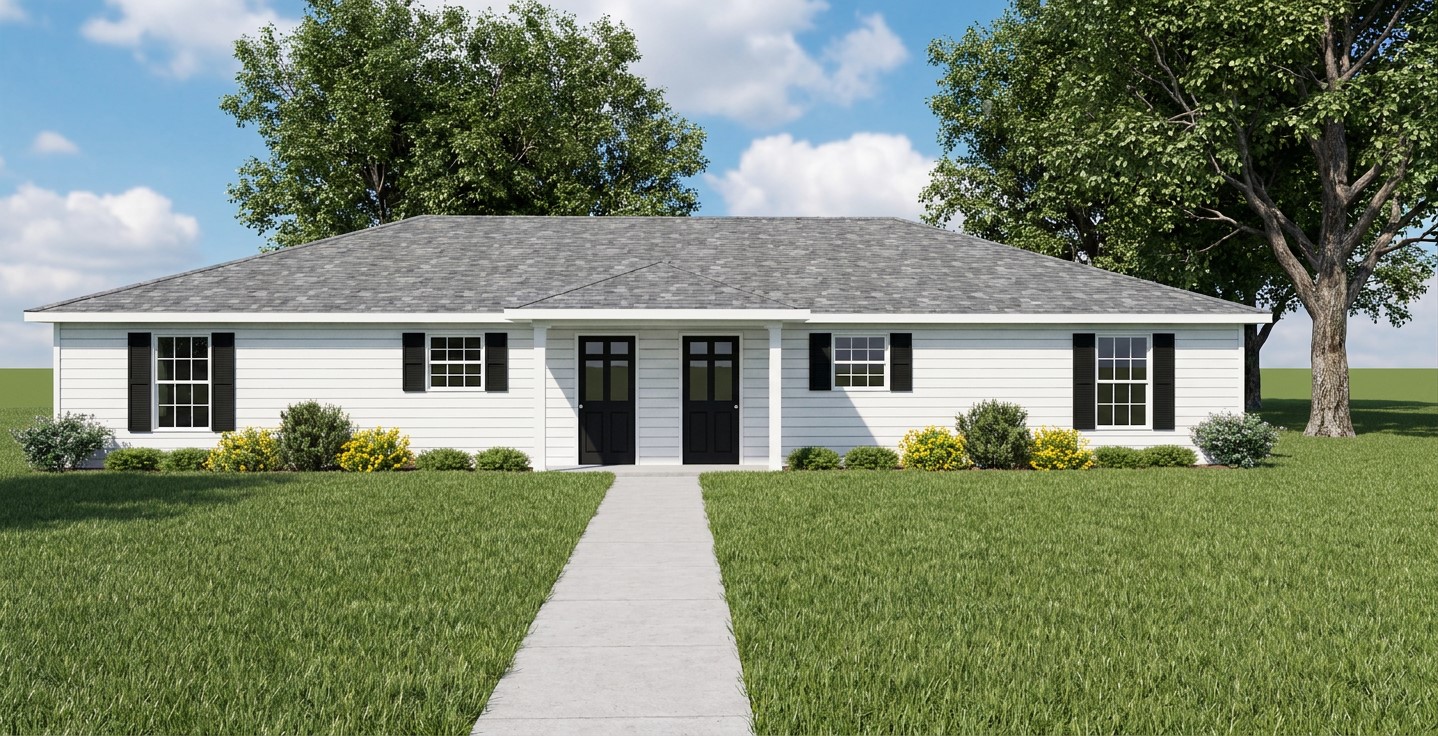

Plan#
J0911d |
|
Economical construction - Duplex |
2 bedrooms / 1.5 bath
Living area: 1800 sq. ft.
Other: 48 sq. ft.
Total area = 1848 sq. ft.
Living area/unit: 900 sq. ft.
Width: 60'-0" Depth: 30'-0"
Floor plan
|
|
|

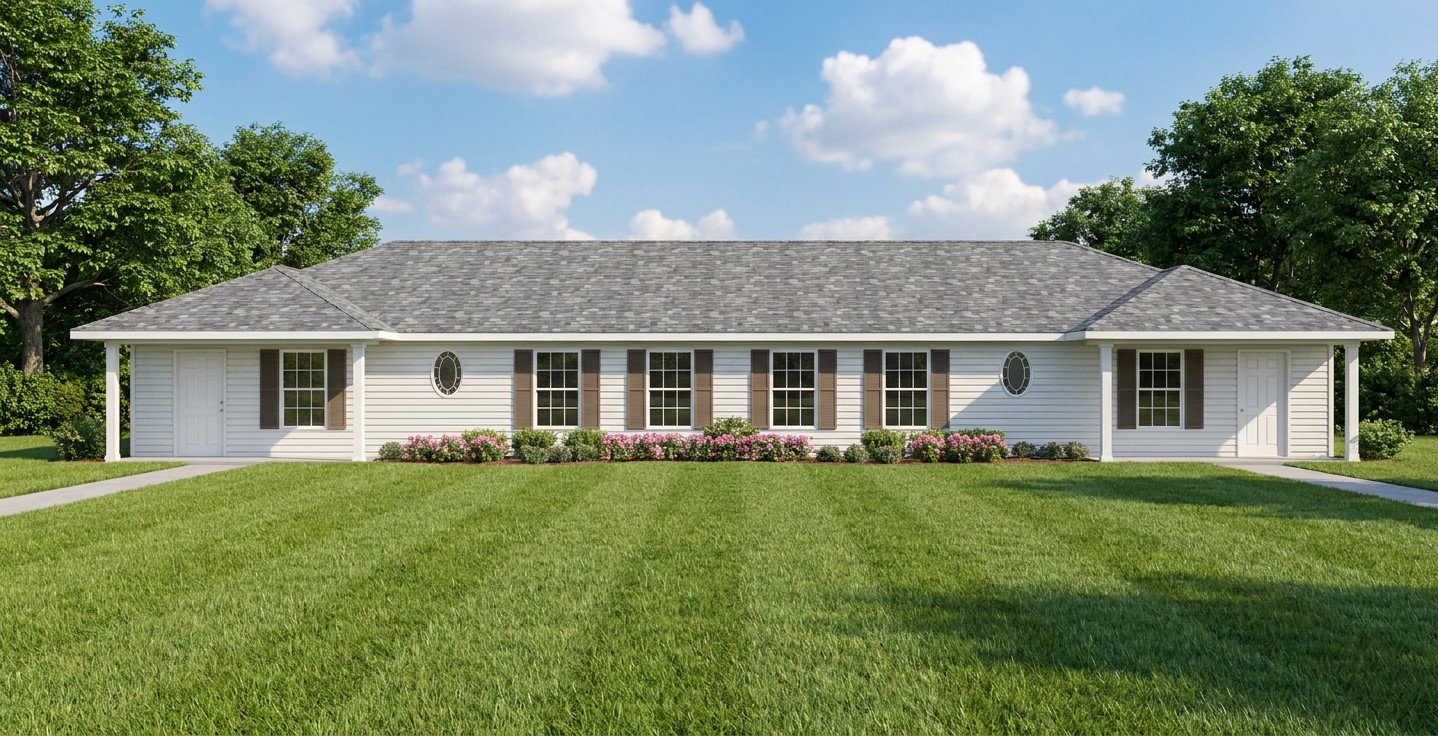

Plan#
J0909d |
|
Designed for shallow lots - Duplex |
2 bedrooms / 2 bath
Living area: 1862 sq. ft. per unit
Other: 120 sq. ft. per unit
Total: 1982 sq. ft. per unit
Living area/unit: 931 sq. ft.
Width: 74'-0" Depth: 29'-2"
Floor plan
|
|
|

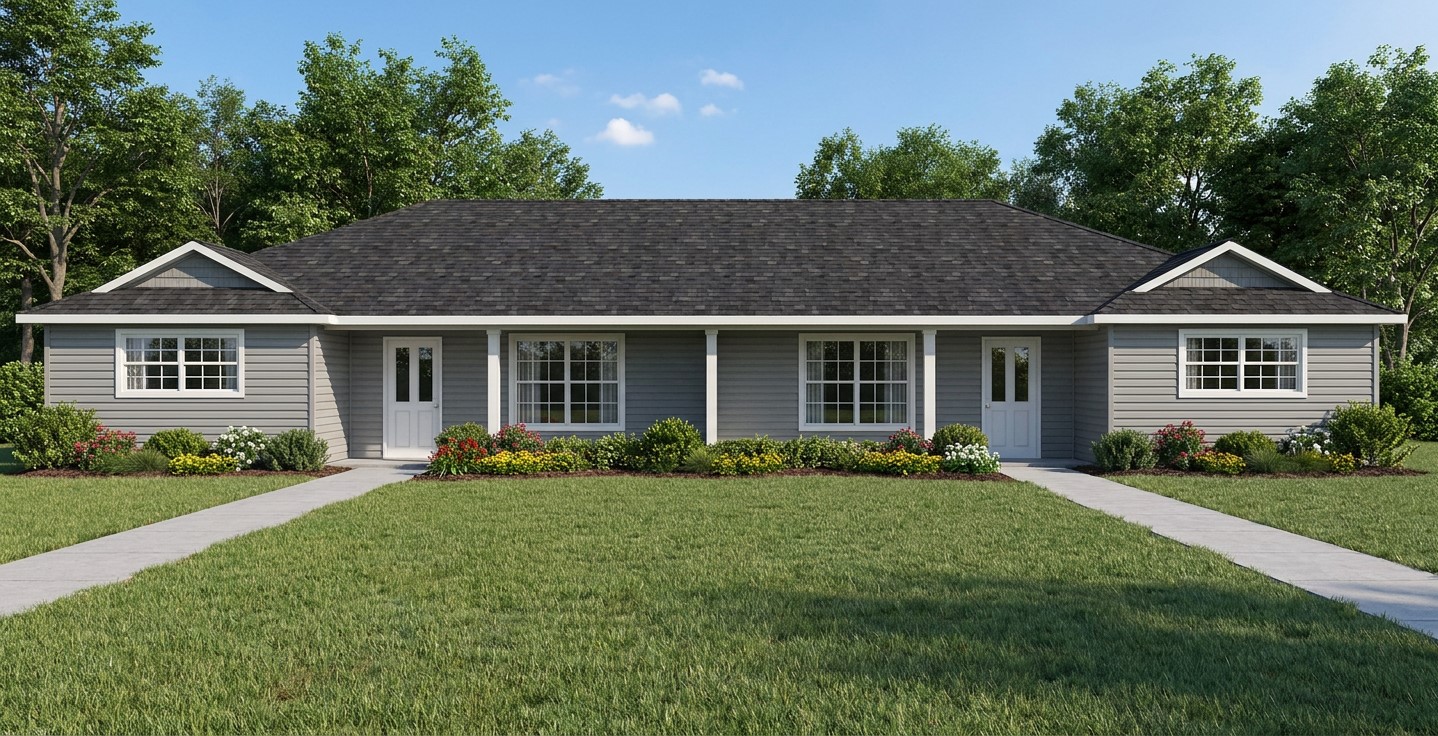

Plan#
J0906d |
|
Duplex |
2 bedrooms / 1 bath
Living area: 1885 sq. ft.
Porch = 160 sq. ft.
Total building footage = 2045 sq. ft.
Width: 74'-0" Depth: 29'-2"
Floor plan
|
|
|

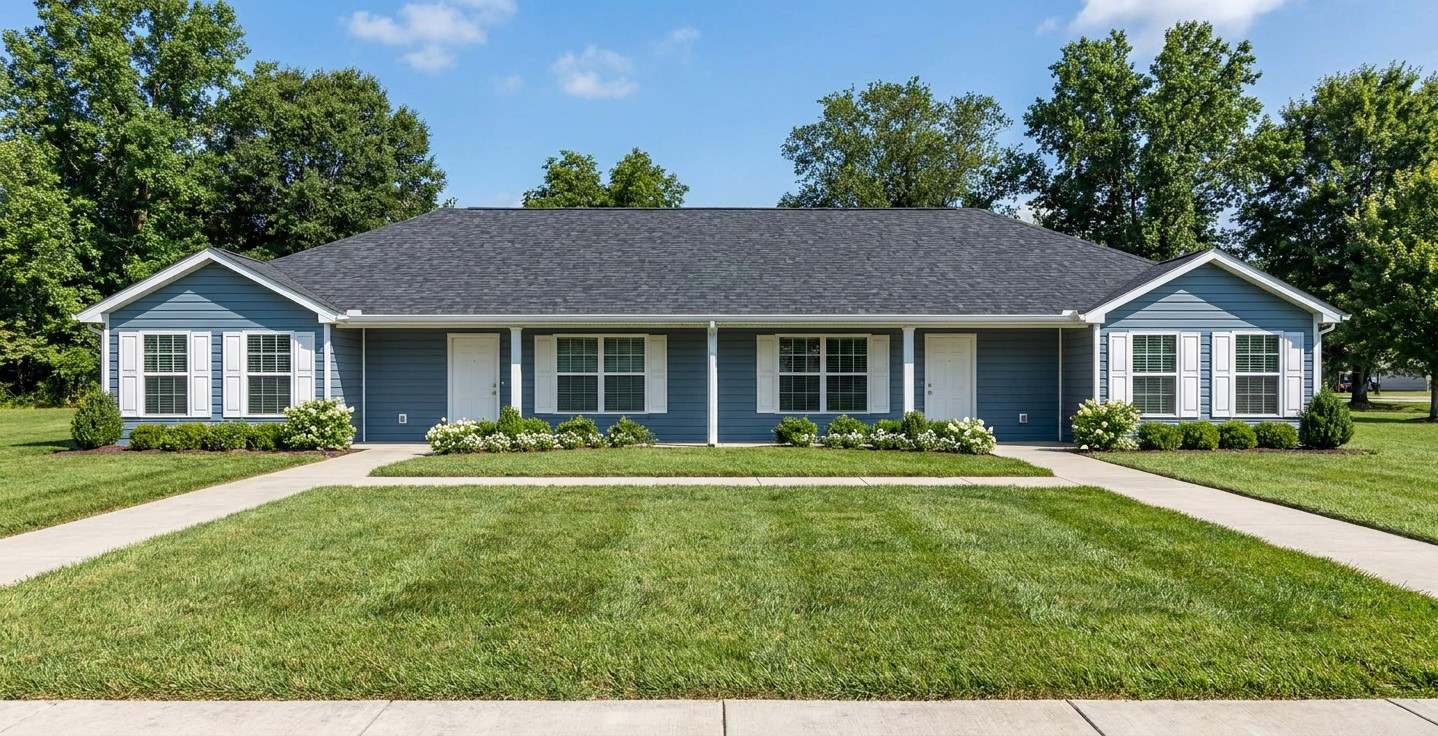

Plan#
J1964d |
|
Duplex |
Bedrooms: 2 Bath: 2
Living area: 1964 sq. ft.
Other: 201 sq. ft.
Total: 2165 sq. ft.
Living area/unit: 982 sq. ft.
Width: 69'-4" Depth: 32'-6"
Floor plan
|
|
|
Plan#
J748d |
|
Duplex |
2 bedrooms / 1 bath
Living area: 748 sq. ft.
Other: 44 sq. ft.
Total: 792 sq. ft.
Total building Living area: 1496 sq. ft.
Width: 44'4 Depth: 36'2
Floor plan
|
|
|

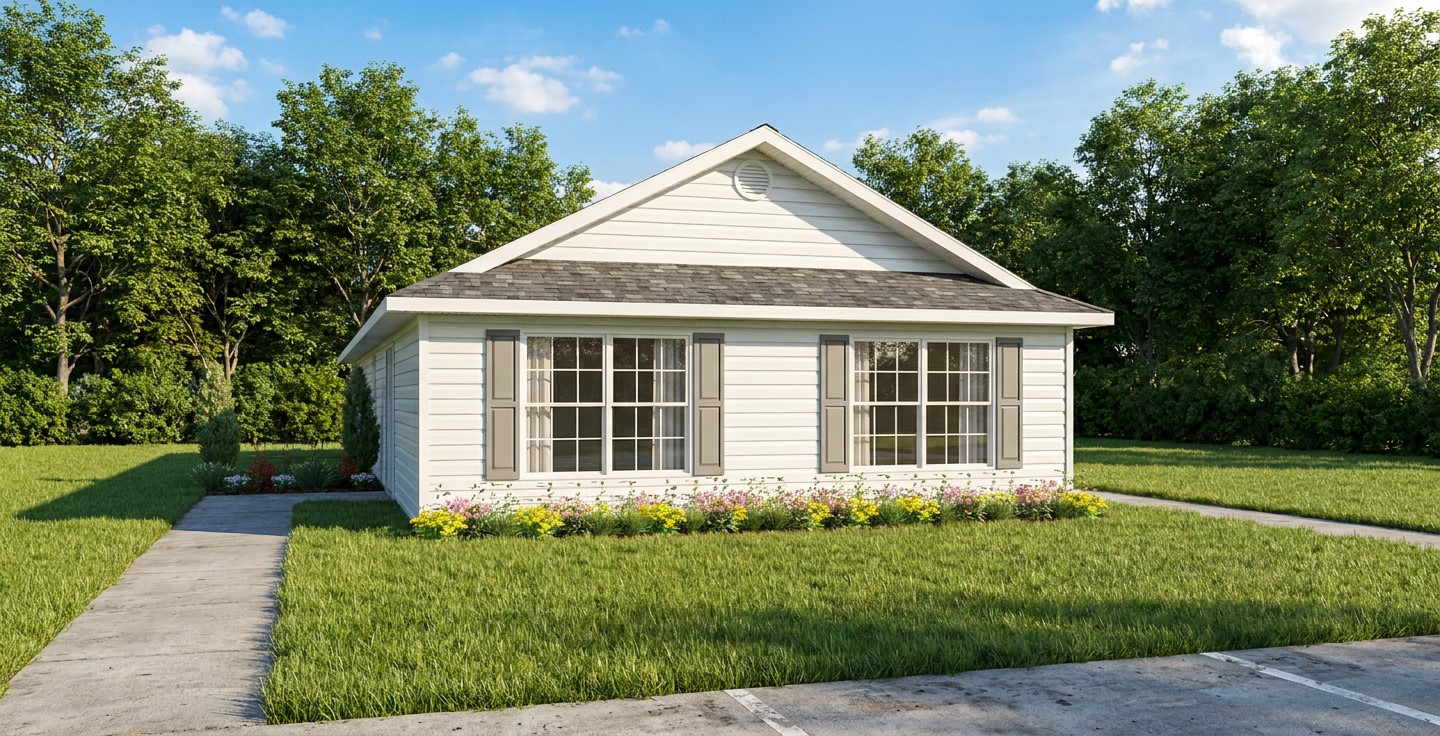

Plan# J09052d |
|
Side entrance, both units. Narrow lot design - Duplex |
2 bedrooms / 2 bath
Living area: 937 sq. ft. per unit
Total building footage = 1920 sq. ft.
Width: 24'-0" Depth: 80'-0"
Floor plan
|
|
|

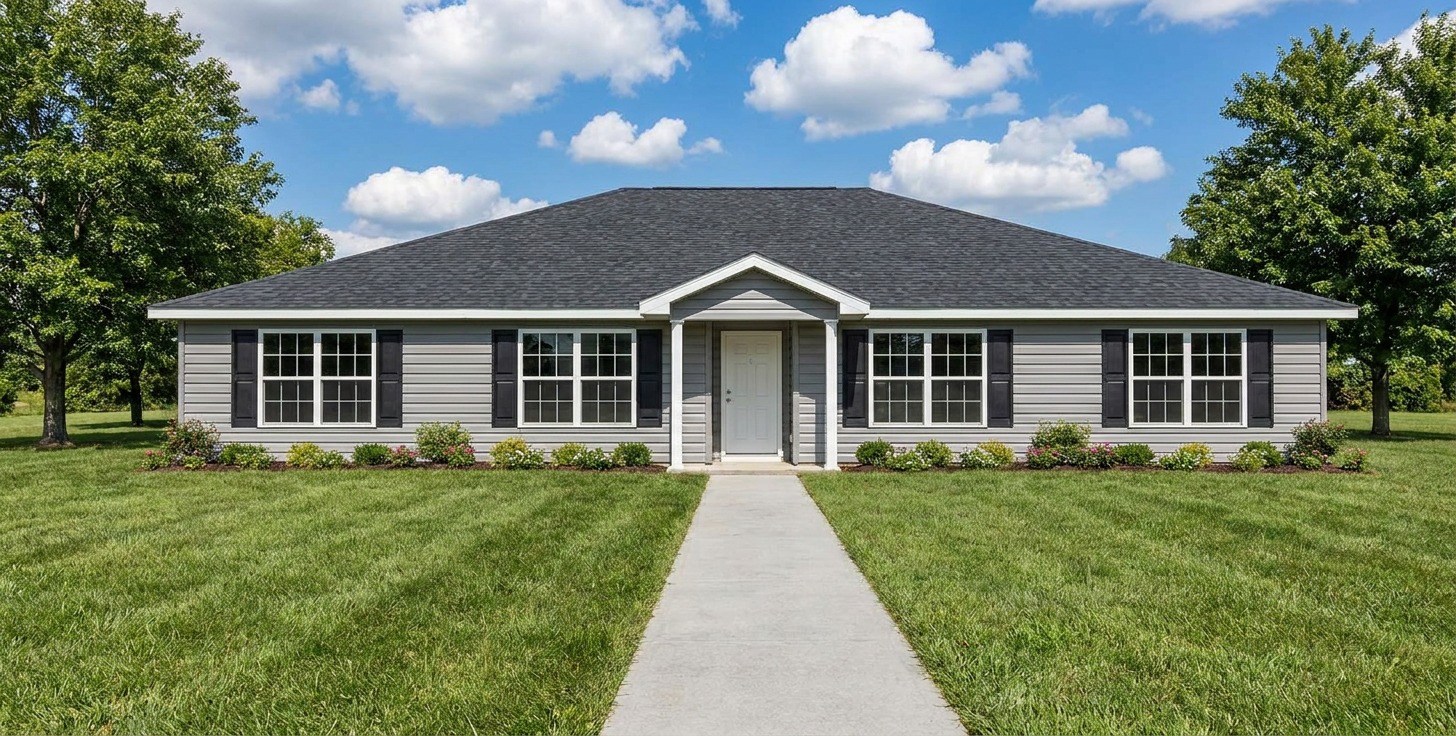

Plan#
J0905d |
|
Interior main entrance for both units - Duplex |
2 bedrooms / 2 bath
Living area: 1149 sq. ft. per unit
Total building footage = 2410 sq. ft.
Width: 57'-8" Depth: 46'-6"
Floor plan
|
|
|
Plan#

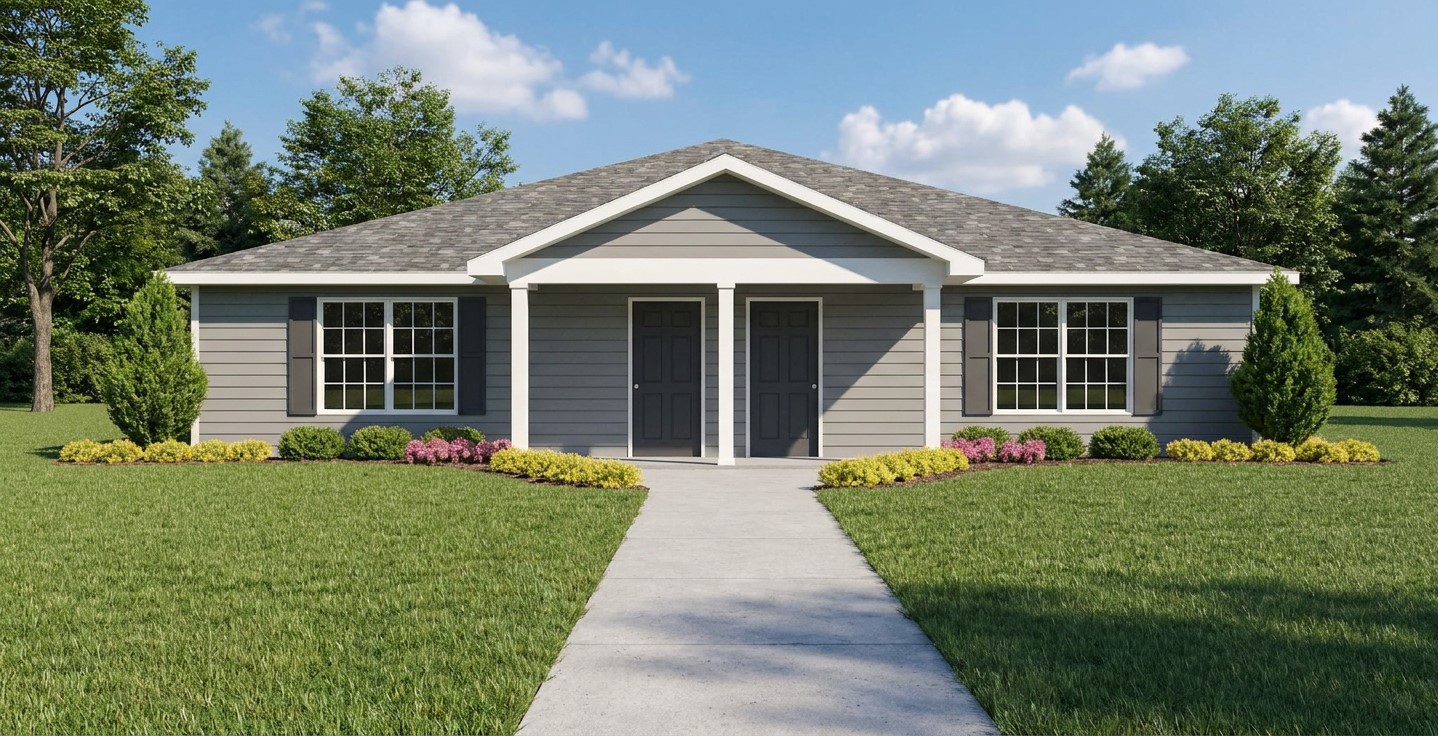

J1202d |
|
Duplex |
Bedrooms: 2 Bath: 2
Living area: 1202 sq. ft.
Other: 105 sq. ft.
Total: 1307 sq. ft.
Total building Living area: 2404 sq. ft.
Width: 44'-8" Depth: 61'-8"
Floor plan
|
|
|
Plan#
J1690d-b |
|
Designed for narrow lots - Duplex |
2 bedrooms / 1 bath
Living area: 1521 sq. ft.
Other: 135 sq. ft.
Total: 1656 sq. ft.
Width: 30'-0 Depth: 59'-0 (including rear patio)
Floor plan
|
|
|
Plan#
J1690d |
|
Designed for narrow lots |
2 bedrooms / 1 bath
Living area: 1539 sq. ft.
Other: 151 sq. ft.
Total: 1690 sq. ft.
*areas shown above are total building.
Width: 30'-0" Depth: 56'-6"
Floor plan
|
|
|
Plan#

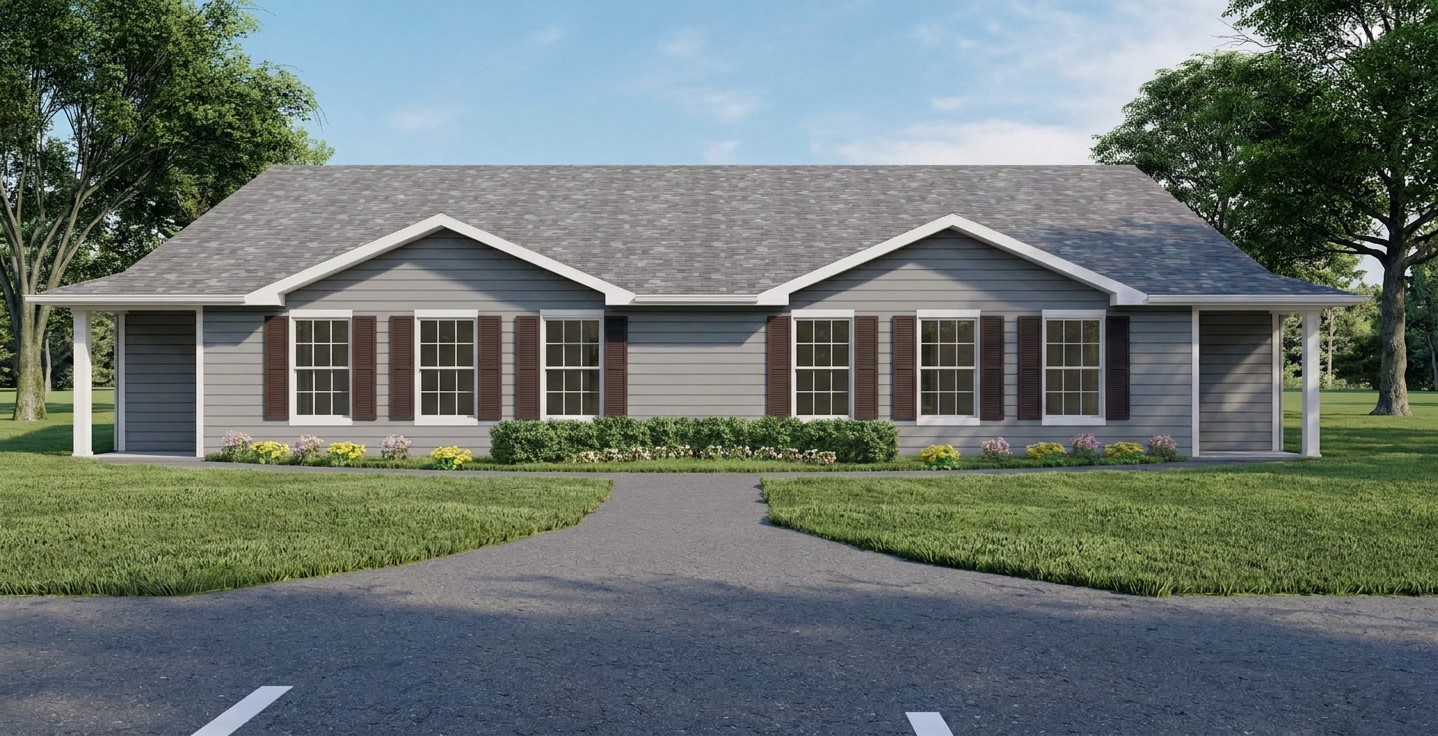

J2670d |
|
|
Bedrooms: 2 Bath: 2
Living area: 2670 sq. ft.
Other: 185 sq. ft.
Total: 2855 sq. ft.
Note: Each unit Living area: 1335 sq. ft.
Width: 60'-0" Depth: 50'-0"
Floor plan
|
|
|

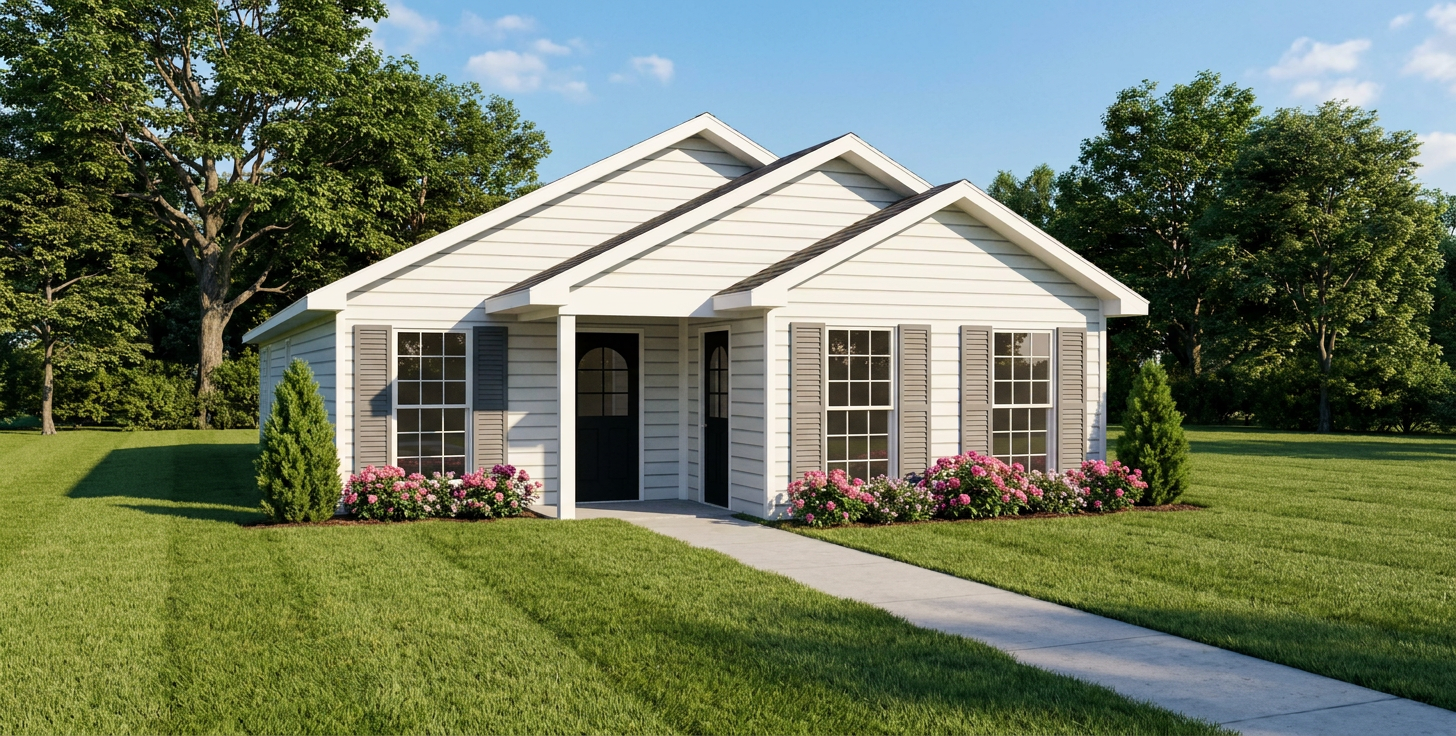

Plan#
J842d |
|
Designed for narrow lots |
Bedrooms: 2 Bath: 1
Living area: 799 sq. ft.
Other: 43 sq. ft. (shared porch)
Total: 842 sq. ft.
Total building Living area: 1598 sq. ft.
Width:
27'-4" Depth: 65'-6"
Floor plan
|
|
|

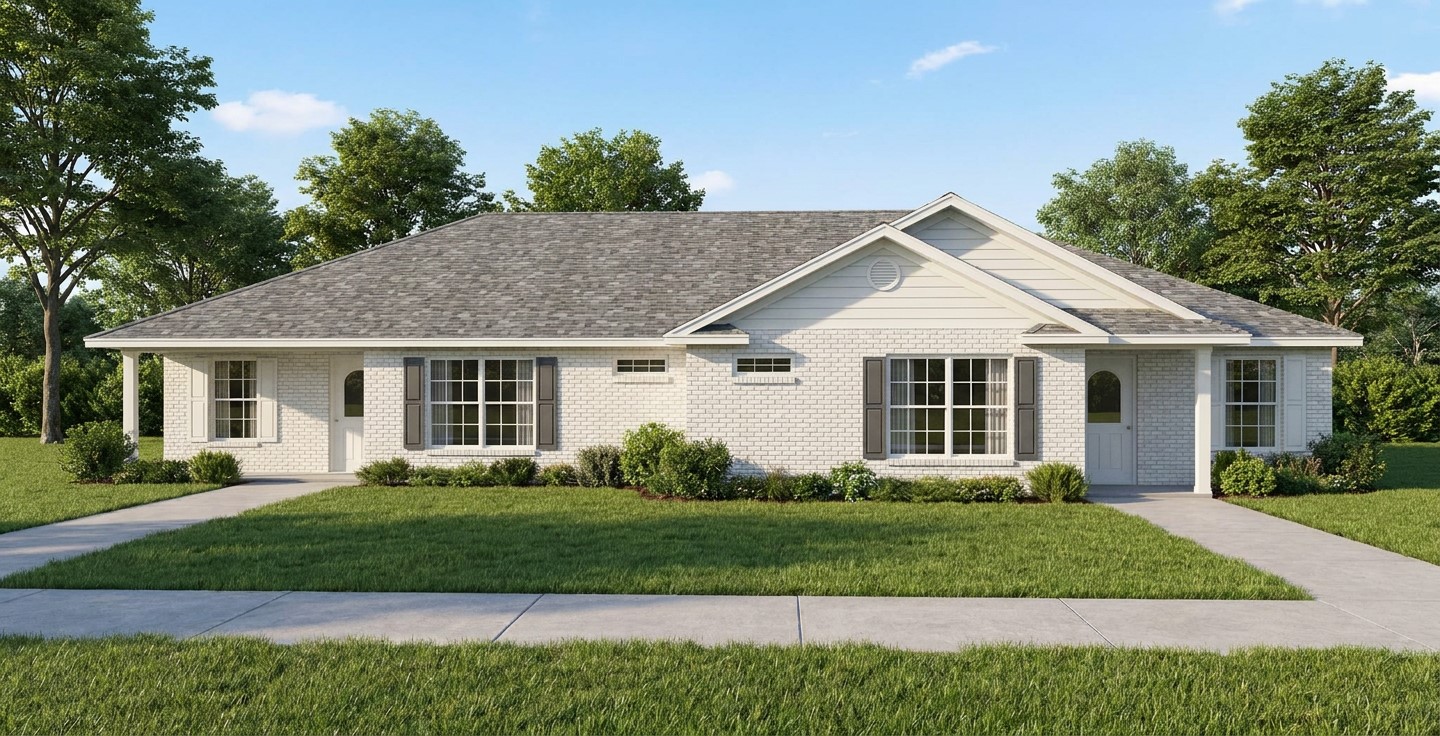

Plan#
J1180d |
|
|
Bedrooms: 2 Bath: 2
Living area: 2329 sq. ft.
Other: 111 sq. ft.
Total: 2440 sq. ft.
*areas shown above are total building.
Note: Each unit living area ~ 1164 sq. ft.
Width: 64'-7" Depth: 44'-11"
Floor plan
|
|
|
Plan#
J942d |
|
Popular design. |
Bedrooms: 2 Bath: 2
Living area: 942 sq. ft.
Other: 56 sq. ft.
Total: 998 sq. ft.
*areas shown above are per unit.
Total building Living area: 1884 sq. ft.
Width: 56'-4" Depth: 39'-8"
Floor plan
|
|
|
Plan#

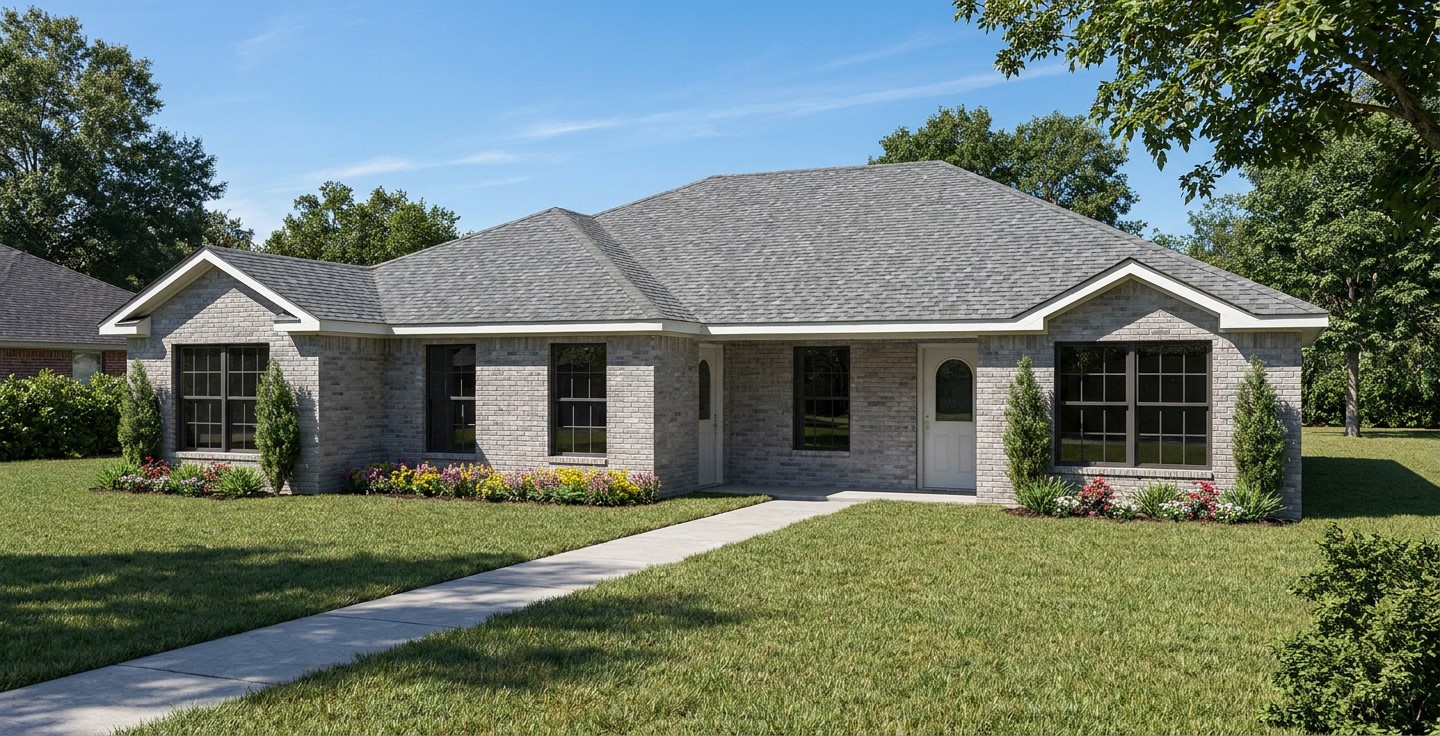

J2235d |
|
*Garden tubs* |
Bedrooms: 2 Bath: 2
Living area: 2183 sq. ft.
Other: 52 sq. ft.
Total: 2235 sq. ft..
*areas shown above are total building.
Note: Each unit living area ~ 1091 sq. ft.
Width: 50'-11" Depth: 53'-1"
Floor plan
|
|
|

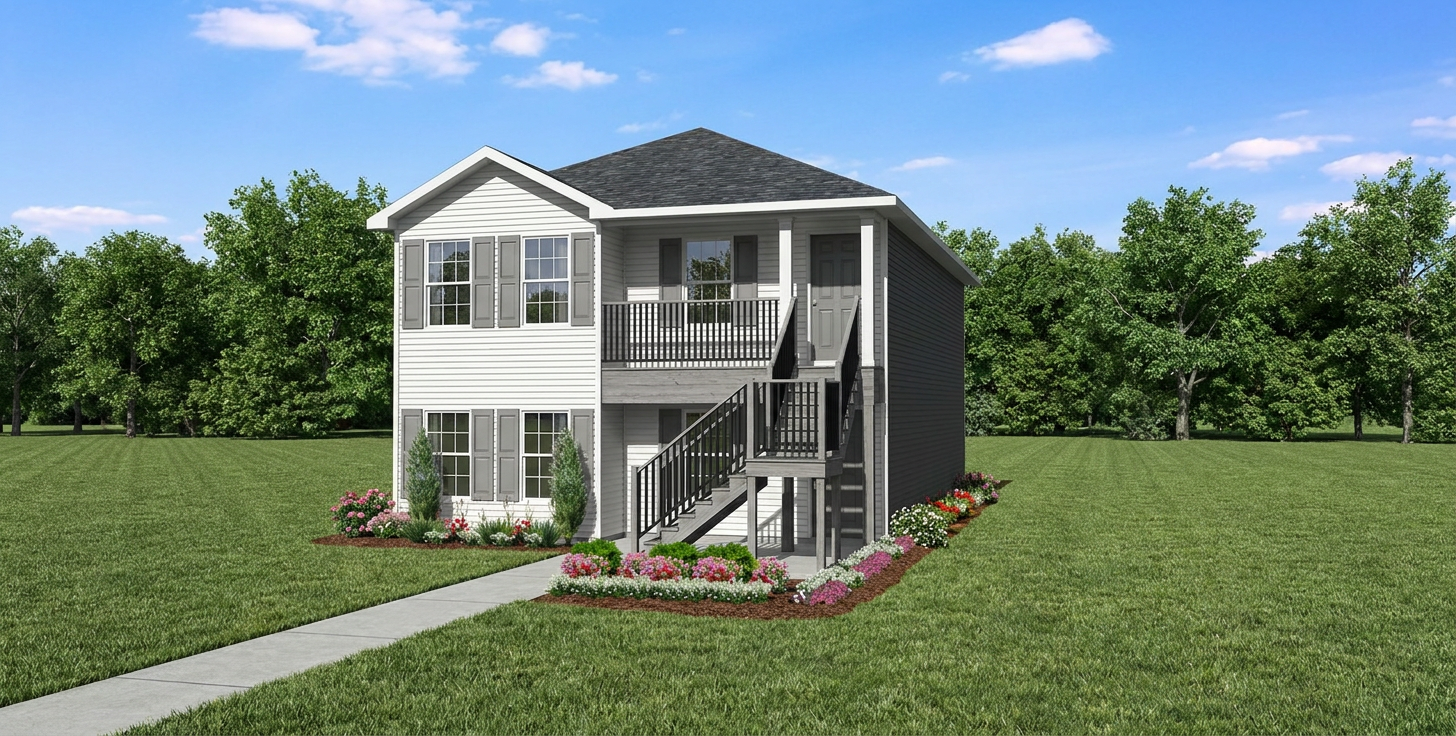

Plan#
J891d-2 |
|
1 unit per floor; narrow lots |
2 bedrooms / 2 bath
Living area: 893 sq. ft.
Other: 47 sq. ft.
Total: 940 sq. ft.
*areas shown are per unit
Total building Living area: 1786 sq. ft.
Width: 26'-6" Depth: 39'-6"
Floor plan
|
|
|

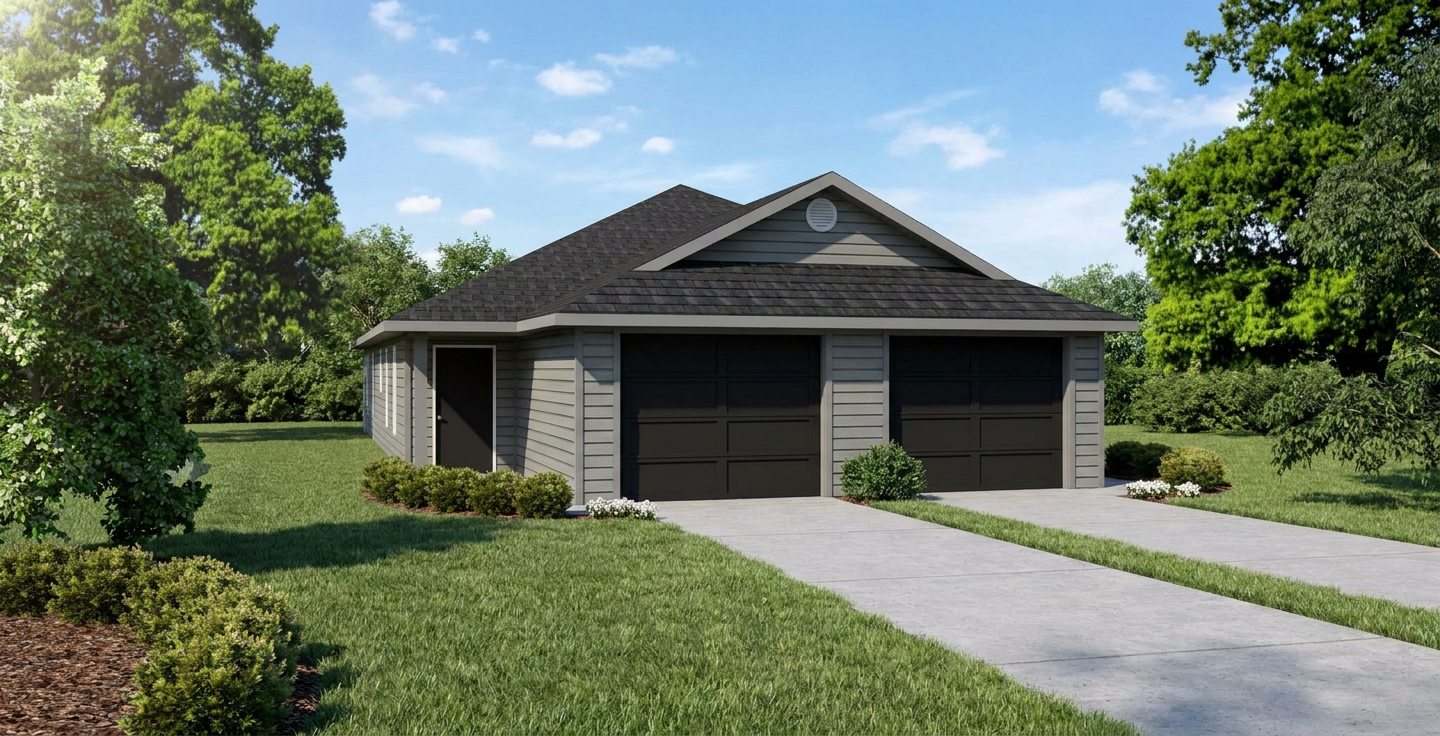

Plan#
J973d |
|
Designed for narrow lots |
Bedrooms: 2 Bath: 1
Living area: 973 sq. ft.
Other: 295 sq. ft.
Total: 1268 sq. ft.
*areas shown above are per unit.
Total building Living area: 1946 sq. ft.
Width: 36'-4" Depth: 71'-4"
Floor plan
|
|
|
Plan#
J1828d |
|
Designed for narrow lots |
2 bedrooms / 1 bath
Living area: 1828 sq. ft.
Other: 146 sq. ft.
Total: 1974 sq. ft.
*areas shown above are total building.
Note: Each unit Living area: 914 sq. ft.
Width: 30'-0" Depth: 65'-2"
Floor plan
|
|
|
Plan#
J2387d |
|
Elegance |
Bedrooms: 2 Bath: 2
Living area: 2387 sq. ft.
Other: 102 sq. ft.
Total: 2489 sq. ft.
*areas shown above are total building.
Note: Each unit living area ~ 1193 sq. ft.
Width: 52'-11" Depth: 48'-5"
Floor plan
|
|
|
Plan#
J1998d |
|
Designed for corner lots |
Bedrooms: 2 Bath: 2
Living area: 1878 sq. ft.
Other: 120 sq. ft.
Total: 1998 sq. ft.
*areas shown above are total building.
Note: Each unit Living area: 939 sq. ft.
Width: 41'-0" Depth: 66'-0"
Floor plan
|
|
|
Plan#
J1905d |
|
|
Bedrooms: 2 Bath: 1
Living area: 1905 sq. ft.
Other: 54 sq. ft.
Total: 1959 sq. ft.
*areas shown above are total building.
Note: Each unit living area ~ 952 sq. ft.
Width: 52'-0" Depth: 42'-6"
Floor plan
|
|
|
Plan#
J2030d |
|
Designed for narrow lots |
Bedrooms: 2 Bath: 1.5
Living area: 2030 sq. ft.
Other: 210 sq. ft.
Total: 2240 sq. ft.
*areas shown above are total building.
Note: Each unit Living area: 1015 sq. ft.
Width: 35'-0" Depth: 64'-0"
Floor plan
|
|
|
Plan#
J1617d |
|
Designed for narrow lots |
2 bedrooms / 1.5 bath
Living area: 1617 sq. ft.
Other: 130 sq. ft.
Total: 1747 sq. ft.
*areas shown above are total building.
Width: 77'-10"
Depth: 27'-10"
Floor plan
|
|
|
Plan#
J2664d |
|
duplex with a garage per unit |
Bedrooms: 2 Bath: 2
Living area: 2034 sq. ft.
Other: 630 sq. ft.
Total: 2664 sq. ft.
*areas shown are total building
Width: 53'-8" Depth: 60'-4"
Floor plan
|
|
|
Plan#
J949d |
|
|
2 bedrooms / 1 bath
Living area: 949 sq. ft.
Other: 26 sq. ft.
Total: 975 sq. ft.
*areas shown above are per unit.
Total building Living area: 1898 sq. ft.
Width: 52'-2" Depth:
42'-4"
Floor plan
|
|
|
Plan#
J1313d |
|
garage per unit |
2 bedrooms / 1.5 bath
Living area: 1029 sq. ft.
Other: 284 sq. ft.
Total: 1313 sq. ft.
*areas shown above are per unit.
Total building Living area: 1898 sq. ft.
Width: 77'-4" Depth: 35'-11"
Floor plan
|
|
|
Plan#
J918d |
|
Open layout, Covered front porches |
2 bedrooms / 1.5 bath
Living area: 918 sq. ft.
Other: 83 sq. ft.
Total: 1001 sq. ft.
*areas shown are per unit
Total building Living area: 1836 sq. ft.
Width: 49'-1" Depth:
41'-8"
Floor plan
|
|
|
Plan#
J1042d |
|
|
Bedrooms: 2 Bath: 1
Living area: 1042 sq. ft.
Other: 43 sq. ft.
Total: 1085 sq. ft.
*areas shown are per unit
Total building Living area: 2084 sq. ft.
Width: 62'-0" Depth:
36'-2"
Floor plan
|
|
|
Plan#
S820db |
|
|
Bedrooms: 2 Bath: 1
Living area: 1653 sq. ft.
Other: 99 sq. ft.
Total: 1752 sq. ft.
*areas shown are total building
Width: 51'-6" Depth:
34'-8"
Floor plan
|
|
|
Plan#
J927d |
|
Popular layout |
2 bedrooms / 1.5 bath
Living area: 927 sq. ft.
Other: 21 sq. ft.
Total: 948 sq. ft.
*areas shown are per unit
Total building Living area: 1854 sq. ft.
Width: 66'-8" Depth: 35'-10"
Floor plan
|
|
|
Plan#
J1070d |
|
|
2 bedrooms / 1.5 bath
Living area: 2140 sq. ft.
Other: 128 sq. ft.
Total: 2268 sq. ft.
*areas shown are total building
Note: Each unit Living area: 990 sq. ft.
Width: 59'-4" Depth: 39'-8"
Floor plan
|
|
|
Plan#
J2630d |
|
Comfort and style of a custom home |
2 bedrooms / 1 bath
Living area: 2296 sq. ft.
Other: 334 sq. ft.
Total: 2630 sq. ft.
*areas shown are total building
Note: Each unit Living area: 1148 sq. ft.
Width: 57'-0" Depth: 55'-8"
Floor plan
|
|
|
Plan#
J925d |
|
Narrow lot duplex plan |
2 bedrooms / 2 bath
Living area: 925 sq. ft.
Other: 78 sq. ft.
Total: 1003 sq. ft..
*areas shown above are per unit.
Total building Living area: 1850 sq. ft.
Width: 32'-4" Depth: 62'-4"
Floor plan
|
|
|
